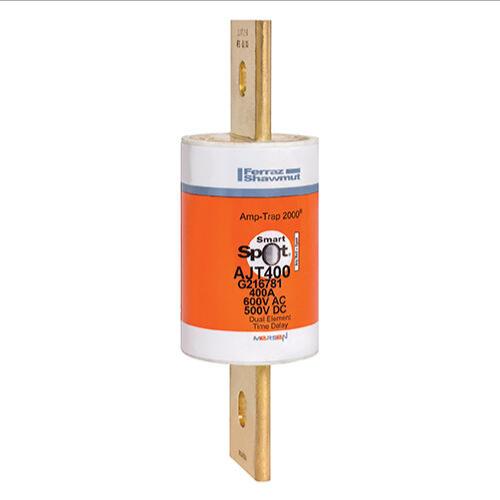

MERSEN FERRAZ AJT400 Time Delay Fuse, 600VAC, 400A, 1 Pole
Item: AG8LTBModel: AJT400Cross Ref: 4TAU9
7 In Stock
Ships within 2 days via
10.00% off
€368.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 400A |
| Body Material | Melamine |
| Body Style | Blade |
| Body/insulating Material | GMG |
| Class | Class J |
| Compatible Fuse Block Series | Jfb, Sj, Us3J, Us5J |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dc Voltage Rating | 500V DC |
| Diameter | 2 1/8" |
| Element | Dual |
| Equivalent Brand And Series | Bussmann LPJ, Littelfuse JTD, Mersen AJT Series |
| Equivalent Series | Ajt, Jtd, Lpj |
| Fits Fuse Block Style | Nonrejection |
| Frame Type | AJT |
| Frequency | 50/60 Hz |
| Fuse Class | Class J |
| Fuse Dia. | 2 3/25" |
| Fuse Length | 7.13" |
| Fuse Size | 7 1/8" x 2 1/8" |
| Indication System | Yes |
| Indication System Type | Smartspot |
| Interrupt Rating | 100 kA @ 500V DC, 200 kA @ 600V AC |
| Length | 181.1 mm |
| Mounting | Clip, Bolted |
| Mounting Style | Clip Or Bolted |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-ajt10.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Series | AJT Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Ul/Csa |
| Visual Indication | Indicating |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 5.38 |
| Ship width (cm) | 5.38 |
| Country of Origin | MX |
