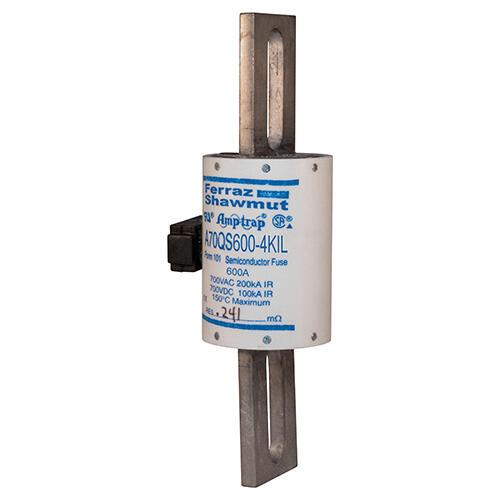

MERSEN FERRAZ A70QS600-4KIL Semiconductor, High Speed, 700V, 600A, aR Class, Type 4K
Get it by Monday, Aug 31
€904.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 40 kA |
| Ac Voltage | 700V AC |
| Ac/dc | AC/DC |
| Amps | 600A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dia. | 50.8 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Il Indicator |
| Length | 180.1 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a70qs100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 700V |
| Rated Voltage Dc Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.64 |
| Ship height (cm) | 7.47 |
| Ship length (cm) | 20.47 |
| Ship width (cm) | 7.77 |
Product Details:
- With IL Indicator
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Speed Type | Fuse Size | Visual Indication | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A70QS100-4 | 100A | 25.4 mm | 50 kA | Brass | High Speed | - | - | - | €153.61 | |
 |
A70QS100-4IL | 100A | 25.4 mm | 50 kA | Brass | High Speed | 4 3/8" x 1" | Indicating | A70QS Series | €219.20 | |
 |
A70QS125-4 | 125A | 31 mm | 50 kA | Brass | High Speed | 4 3/8" x 1 1/4" | Non Indicating | A70QS Series | €265.39 | |
 |
A70QS125-4IL | 125A | 31 mm | 50 kA | Brass | High Speed | 4 3/8" x 1 1/4" | Indicating | A70QS Series | €243.21 | |
 |
A70QS125-4K | 125A | 31 mm | 100 kA | Brass | High Speed | 5 1/16" x 1 1/4" | Non Indicating | A70QS-K Series | €214.69 | |
|
A70QS125-4KIL | 125A | 31 mm | 50 kA | Brass | High Speed | - | - | - | €349.34 | |
 |
A70QS150-4 | 150A | 31 mm | 50 kA | Brass | High Speed | 4 3/8" x 1 1/4" | Non Indicating | A70QS Series | €265.39 |
