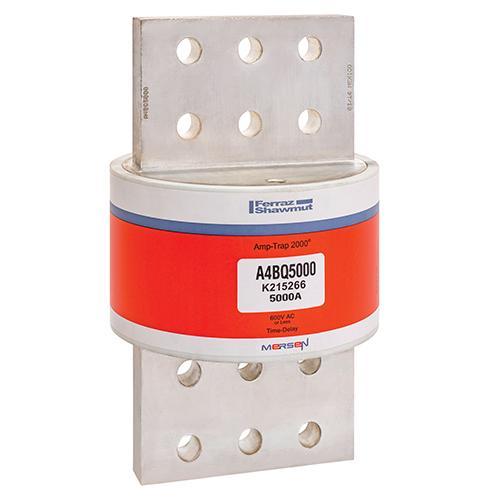

MERSEN FERRAZ A4BQ5000 Time Delay Fuse, 600V, 5000A, Class L
Get it by Tuesday, Dec 23
10.00% off
€4,799.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC |
| Amps | 5000A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Diameter | 158.8 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Fuse Class | Class L |
| Fuse Dia. | 6 1/4" |
| Fuse Length | 10 3/4" |
| Length | 273 mm |
| Mounting | Bolted |
| Mounting Type | Bolt |
| Product Datasheet | mersen-ferraz-a4bq1000.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rohs Compliant | Yes |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
Shipping Info:
| Ship weight (kg) | 13.56 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 29.67 |
| Ship width (cm) | 16.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Body Material | Fuse Dia. | Fuse Length | Dc Voltage Rating | Speed | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A4BQ1000 | 1000A | 63.5 mm | GMG | 2 1/2" | 10 3/4" | - | - | - | €1,504.14 | |
 |
A4BQ1200 | 1200A | 2 1/2" | Melamine | - | - | 500V DC | Time Delay | Blade | €1,460.15 | |
 |
A4BQ1400 | 1400A | 3" | Melamine | 3" | 10 3/4" | 500V DC | Time Delay | Blade | €2,471.13 | |
 |
A4BQ1500 | 1500A | 3" | Melamine | 3" | 10 3/4" | 500V DC | Time Delay | Blade | €2,471.13 | |
 |
A4BQ1600 | 1600A | 3" | Melamine | 3" | 10 3/4" | 500V DC | Time Delay | Blade | €1,849.64 | |
 |
A4BQ1800 | 1800A | 3 1/2" | Melamine | 3 1/2" | 10 3/4" | 500V DC | Time Delay | Blade | €3,208.98 | |
|
A4BQ2000 | 2000A | 3 1/2" | Melamine | - | - | 500V DC | Time Delay | Blade | €2,584.10 |
