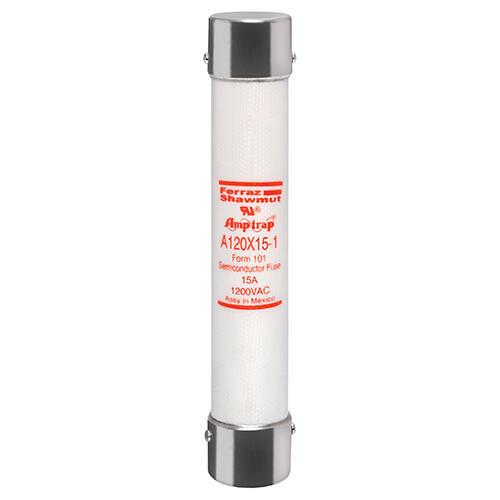

MERSEN FERRAZ A120X15-1 Semiconductor Fuse, High Speed, 1200V, 15A, aR Class
Item: CH4TPHModel: A120X15-1Cross Ref: 36A645
7 In Stock
Ships within 2 days via
10.00% off
€356.90 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 1200V AC |
| Ac/dc | AC |
| Amps | 15A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 1000V DC |
| Diameter | 20.6 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Fws Series |
| Finish | Tin Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 4 5/8" x 13/16" |
| Interrupt Rating | 100 kA @ 1000V DC, 100 kA @ 1200V AC |
| Length | 117.6 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a120x10-1.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 1200V |
| Series | A120X Series |
| Speed | Fast Acting |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
| Standards | Ce, Ul Recognized, Guide Jfhr2, File E60314, Csa Certified |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 13 |
| Ship width (cm) | 10.46 |
| Country of Origin | MX |
