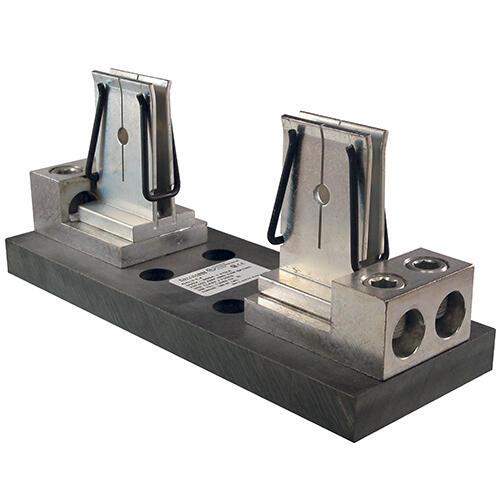

MERSEN FERRAZ 6631J Fuse Base, 600V, 600A, Class J, 1 Pole, Tin Plated, Aluminium Box
Item: CH4RNYModel: 6631JCross Ref: 5FXR7
7 In Stock
Ships within 2 days via
10.00% off
€733.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amp Range | 401-600A |
| Amps | 600A |
| Body Material | Phenolic |
| Body/insulating Material | Phenolic |
| Connector Type | Box Lug |
| Fits Fuse Type | Industrial |
| For Fuse Size | 8" x 2 1/2", 8" x 2 19/32" |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class J, Class R |
| Fuse Class | Class J |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class J |
| Height | 120.4 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 279.4 mm |
| Max. Fuse Rating | 600A |
| Mounting Style | Bolt Down |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-62001j.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque Rating | 56.492 N-m |
| Visual Indication | Non Indicating |
| Voltage Rating | 600V AC/DC |
| Width | 101.6 mm |
| Wire Range | 4 AWG to 500 mcm |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 20.96 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 17.48 |
| Country of Origin | MX |
Documentation:
