MERSEN FERRAZ 62003R Fuse Base, 600V, 200A, Class R, 3 Pole, Tin Plated, Aluminium Box
Item: CH4RMEModel: 62003RCross Ref: 5FXR4
7 In Stock
Ships within 2 days via
5.00% off
€1,049.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V |
| Ac/dc | AC/DC |
| Amps | 101-200A , 200A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug |
| Features | Solid State Smartspot Indicator |
| Fits Fuse Type | Industrial |
| For Fuse Size | 9 5/8" x 1 13/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Class | Class R |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class R |
| Height | 73.7 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 266.7 mm |
| Max. Fuse Rating | 200A |
| Mounting Style | Bolt Down |
| No. Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque | 42.369 N-m |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/DC |
| Width | 254 mm |
| Wire | 6 AWG to 350 mcm |
Shipping Info:
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 30.48 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Ac Voltage Rating | Installation Mounting | Body/insulating Material | Torque | Max. Fuse Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60305R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €17.72 | |
 |

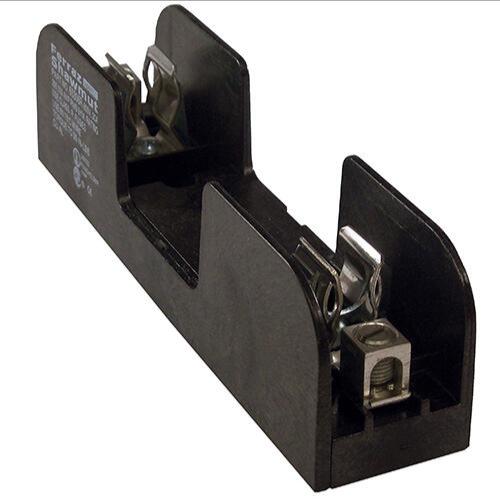

60306R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €32.56 | |
 |

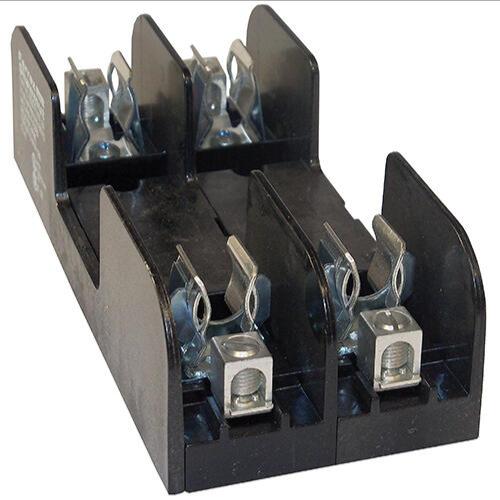

60307R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €85.03 | |
|
60308R | 30A | 50.8 mm | 3 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €120.94 | |
|
60315R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €40.31 | |
|
60316R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 10 | €437.98 | |
|
60317R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €69.84 |
