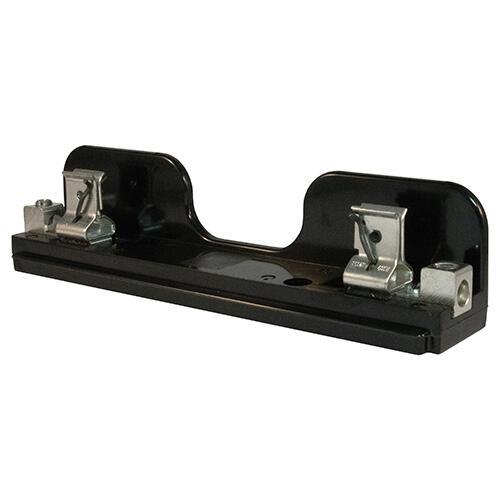

MERSEN FERRAZ 61005R Fuse Base, 600V, 100A, Class R, Adder, Tin Plated, Copper Box
Get it by Monday, Aug 31
€134.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 100A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Frequency | 50/60 Hz |
| Fuse Class | Class R |
| Fuse Installation Method | Clip In |
| Height | 63 mm |
| Installation Mounting | Screw Mount, Din Rail |
| Length | 256 mm |
| Max. Fuse Rating | 100A |
| No. Of Poles | Adder |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 200 kA |
| Torque | 5.649 N-m |
| Width | 45.7 mm |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 25.88 |
| Ship length (cm) | 16.21 |
| Ship width (cm) | 6.5 |
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Ac Voltage Rating | Installation Mounting | Body/insulating Material | Torque | Max. Fuse Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60305R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €17.72 | |
 |
60306R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €32.56 | |
 |
60307R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €85.03 | |
|
60308R | 30A | 50.8 mm | 3 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €120.94 | |
|
60315R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €40.31 | |
|
60316R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 10 | €437.98 | |
|
60317R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €69.84 |
