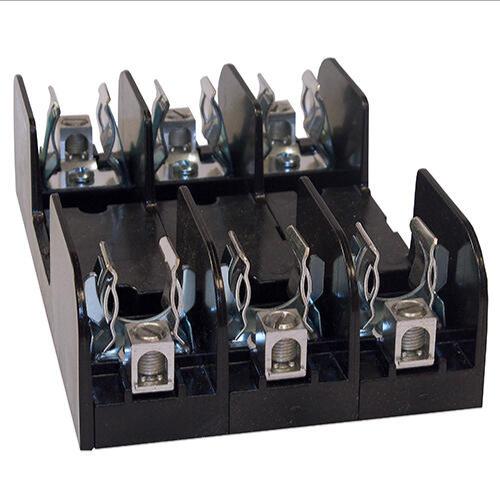

MERSEN FERRAZ 60608R Fuse Base, 600V, 60A, Class R, 3 Pole, Tin Plated, Aluminium Box
Item: CH4RJQModel: 60608RCross Ref: 5LDL9
7 In Stock
Ships within 2 days via
10.00% off
€76.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amp Range | 31-60A |
| Amps | 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5 1/2" x 1 1/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Class | Class R |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class R |
| Height | 50.8 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 177.8 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | Bolt Down |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque Rating | 5.084 N-m |
| Visual Indication | Non Indicating |
| Voltage Rating | 600V AC/DC |
| Width | 115.6 mm |
| Wire Range | 14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 11.56 |
| Country of Origin | MX |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Amps | Body Material | Connector Type | Max. Fuse Rating | Height | Number Of Poles | Ac Voltage Rating | Amp Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60305R | 30A | GFPC | - | 30A | 50.8 mm | Adder | 600V AC | - | 10 | €421.08 | |
 |
60306R | 30A | GFPC | Box Lug | 30A | 50.8 mm | 1 | 600V AC | 0-30A | 1 | €32.38 | |
 |
60307R | 30A | GFPC | Box Lug | 30A | 50.8 mm | 2 | 600V AC | 0-30A | 1 | €73.61 | |
|
60308R | 30A | GFPC | Box Lug | 30A | 50.8 mm | 3 | 600V AC | 0-30A | 1 | €70.29 | |
|
60315R | 30A | GFPC | - | 30A | 50.8 mm | Adder | 600V AC | - | 1 | €40.31 | |
|
60316R | 30A | GFPC | - | 30A | 50.8 mm | 1 | 600V AC | - | 10 | €437.98 | |
|
60317R | 30A | GFPC | - | 30A | 50.8 mm | 2 | 600V AC | - | 1 | €69.84 |
