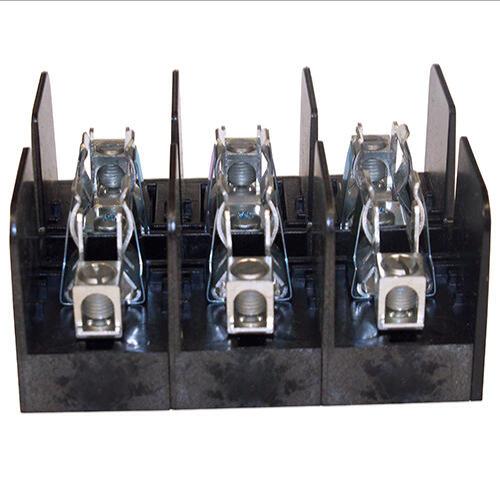

MERSEN FERRAZ 60608 Fuse Base, 600V, 60A, Class H And K, 3 Pole, Tin Plated, Aluminium Box
Item: CH4RJNModel: 60608Cross Ref: 5LDD2
7 In Stock
Ships within 2 days via
5.00% off
€138.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 31-60A , 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5 1/2" x 1 1/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class H/K |
| Fuse Class | Class H, Class K |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | H, K5 |
| Height | 50.8 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 177.8 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | Bolt Down |
| No. Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 50 kA |
| Spring Reinforced Clip | Yes |
| Torque | 5.084 N-m |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/DC |
| Width | 115.6 mm |
| Wire | 14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 11.56 |
| Country of Origin | MX |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Installation Mounting | Body/insulating Material | Torque | Max. Fuse Rating | Ac Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60300 | 30A | 50.8 mm | Adder | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €33.00 | |
|
60301 | 30A | 50.8 mm | 1 | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €38.81 | |
|
60305 | 30A | 50.8 mm | Adder | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €42.10 | |
 |
60306 | 30A | 50.8 mm | 1 | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €42.08 | |
 |
60307 | 30A | 50.8 mm | 2 | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €48.86 | |
|
60308 | 30A | 50.8 mm | 3 | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 600V AC | €106.00 | |
|
60310 | 30A | 50.8 mm | Adder | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 600V AC | €33.66 |
