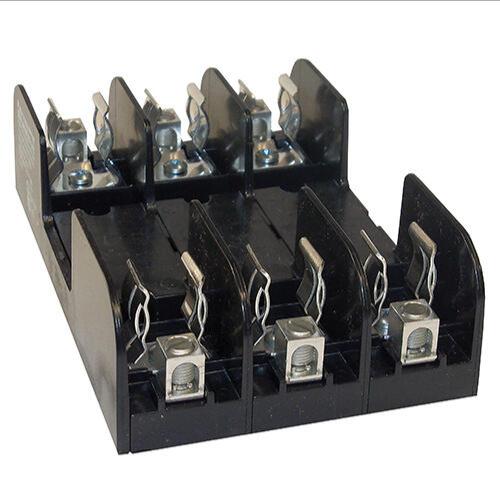

MERSEN FERRAZ 60603 Fuse Base, 600V, 60A, Class H And K, 3 Pole, Tin Plated, Aluminium Box
Item: CH4RHYModel: 60603Cross Ref: 5LDC9
7 In Stock
Ships within 2 days via
10.00% off
€65.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V |
| Ac/dc | AC/DC |
| Amp Range | 31-60A |
| Amps | 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5 1/2" x 1 1/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class H, Class K |
| Fuse Class | Class H/K |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | H, K5 |
| Height | 50.8 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 177.8 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | Bolt Down |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 50 kA |
| Spring Reinforced Clip | No |
| Torque Rating | 5.084 N-m |
| Visual Indication | Non Indicating |
| Voltage Rating | 600V AC/DC |
| Width | 115.6 mm |
| Wire Range | 14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 11.56 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Material | Connector Type | Max. Fuse Rating | Height | Number Of Poles | Ac Voltage Rating | Amp Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60300 | 30A | GFPC | - | 30A | 50.8 mm | Adder | 600V AC | - | €33.00 | |
|
60301 | 30A | GFPC | - | 30A | 50.8 mm | 1 | 600V AC | - | €38.81 | |
|
60305 | 30A | GFPC | - | 30A | 50.8 mm | Adder | 600V AC | - | €42.10 | |
 |
60306 | 30A | GFPC | Box Lug | 30A | 50.8 mm | 1 | 600V AC | 0-30A | €30.49 | |
 |
60307 | 30A | GFPC | Box Lug | 30A | 50.8 mm | 2 | 600V AC | 0-30A | €30.76 | |
|
60308 | 30A | GFPC | Box Lug | 30A | 50.8 mm | 3 | 600V AC | 0-30A | €80.69 | |
|
60310 | 30A | GFPC | - | 30A | 50.8 mm | Adder | 600V AC | - | €33.66 |
