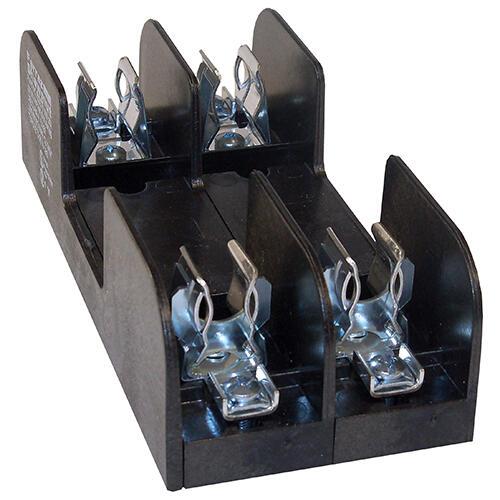

MERSEN FERRAZ 60327R Fuse Base, 600V, 30A, Class R, 2 Pole, Tin Plated, Copper Pressure Plate
Item: CH4RGRModel: 60327RCross Ref: 5LDK7
7 In Stock
Ships within 2 days via
5.00% off
€46.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 0-30A , 30A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Pressure Plate |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5" x 13/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Class | Class R |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class R |
| Height | 50.8 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 177.8 mm |
| Max. Fuse Rating | 30A |
| Mounting Style | Bolt Down |
| No. Of Poles | 2 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque | 2.26 N-m |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/DC |
| Width | 78.5 mm |
| Wire | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 8.74 |
| Ship length (cm) | 25.7 |
| Ship width (cm) | 17.93 |
| Country of Origin | MX |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Ac Voltage Rating | Installation Mounting | Body/insulating Material | Torque | Max. Fuse Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60305R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €17.72 | |
 |
60306R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €32.56 | |
 |
60307R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €85.03 | |
|
60308R | 30A | 50.8 mm | 3 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 3.954 N-m | 30A | 1 | €120.94 | |
|
60315R | 30A | 50.8 mm | Adder | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €40.31 | |
|
60316R | 30A | 50.8 mm | 1 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 10 | €437.98 | |
|
60317R | 30A | 50.8 mm | 2 | 600V AC | Direct Screw Mount | Glass Filled Polycarbonate | 2.26 N-m | 30A | 1 | €69.84 |
