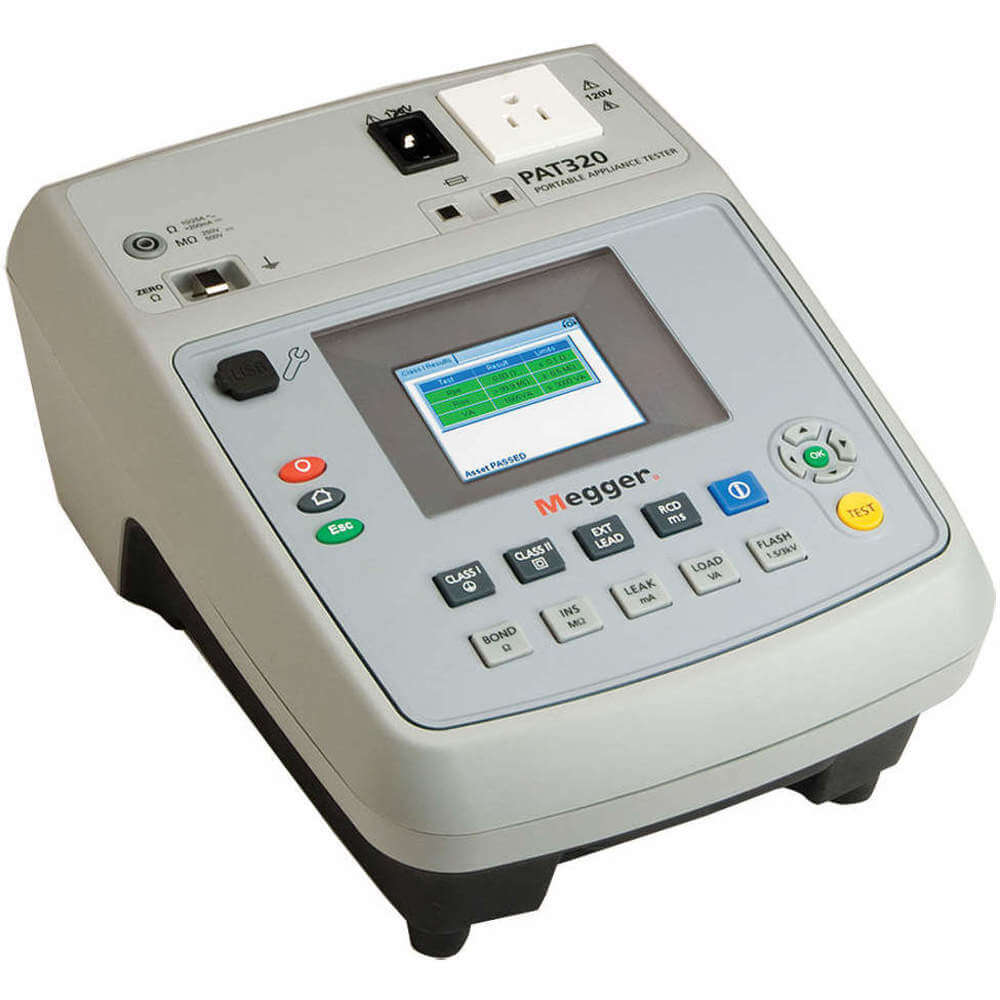

MEGGER PAT320-US Portable Appliance Tester 250 500vdc
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,212.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Appliance Tester |
| Cat Safety Rating | CAT II 300V |
| Current Accuracy | -5% to +5% |
| Current Range | 10-200 mA |
| Display | QVGA |
| Display Screen Type | LCD |
| Display Type | Digital |
| Features | Simple Manual Or Automatic Testing, Tests Portable Rcds And Extension Leads |
| Includes | Adaptor For Testing Extension Leads, Carrying Case, Combined Earth Bond And Insulation Test Lead, Lead Storage |
| Insulation Resistance Measured | 0 M ohms to 99.99 M ohms |
| Insulation Resistance Range | 99 M ohms |
| Insulation Resistance Test Voltage | 250/500V DC |
| Leakage Current Measured | 0-19.99 mA |
| Manufacturer Warranty Length | 1 yr. |
| Max. Resistance Measured | 19.99 ohms |
| Maximum Ac Voltage Measured | 120V |
| Maximum Current Measured | 200 mA |
| Measures | Ground Bond Integrity, Insulation Resistance And Ground Leakage |
| Operating Voltage | 110/230V |
| Special Features | Can Test Extension Cords, Standard Insulation And Ground Bond Tests Are Performed With An Additional Polarity Test To Ensure That The Cord Is Wired Correctly |
| Testing Functions | Insulation Resistance, Ground Bond Integrity, Ground Leakage |
Shipping Info:
| Ship weight (kg) | 6.23 |
| Ship height (cm) | 28.58 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 22.86 |
| HS code | 9030840000 |
| Country of Origin | GB |
Product Details:
- Leakage Current Range (0 to 19.99 mA)
- Special Features: Can Test Extension Cords, Standard Insulation And Ground Bond Tests Are Performed With An Additional Polarity Test To Ensure That The Cord Is Wired Correctly
Product Variants
| Product | Model | Insulation Resistance Range | Display | Amps Range | Price | |
|---|---|---|---|---|---|---|
 |

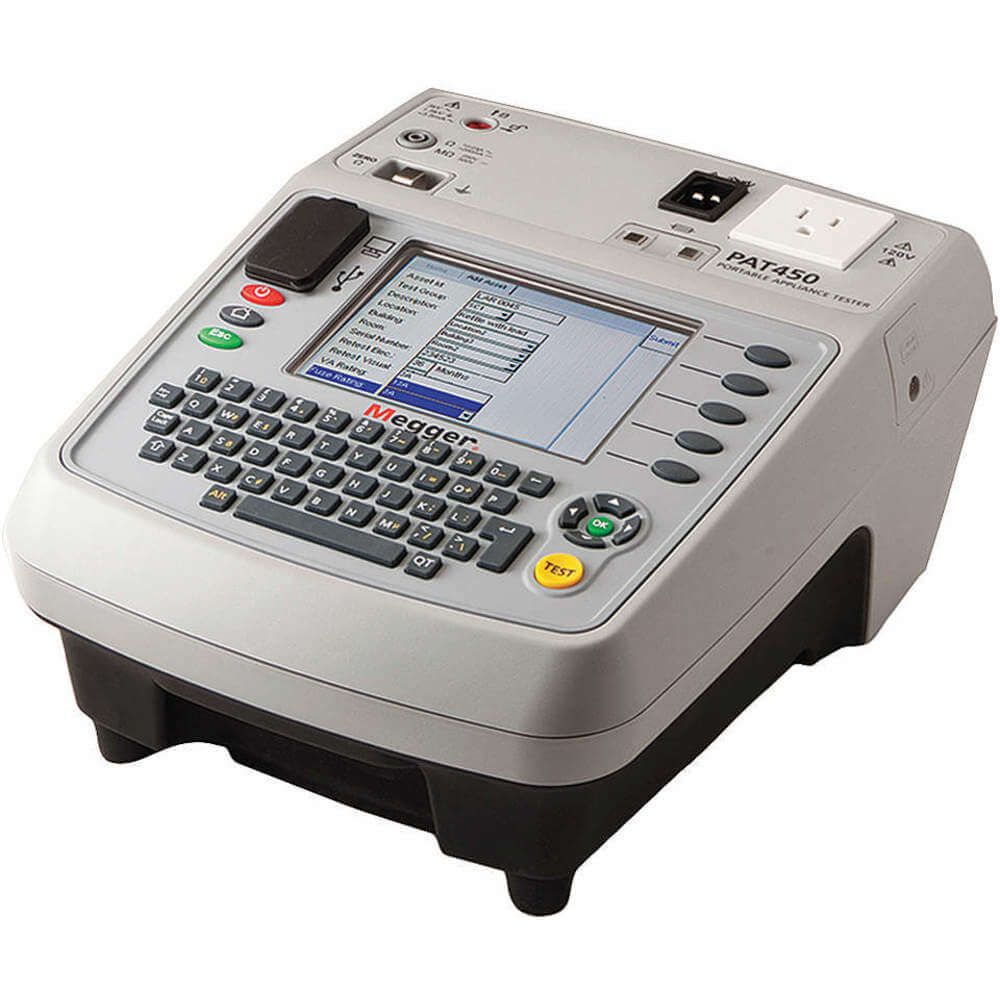

PAT450-US | 0 M ohms to 99.99 M ohms | QVGA | 10-25A | €6,067.25 |
