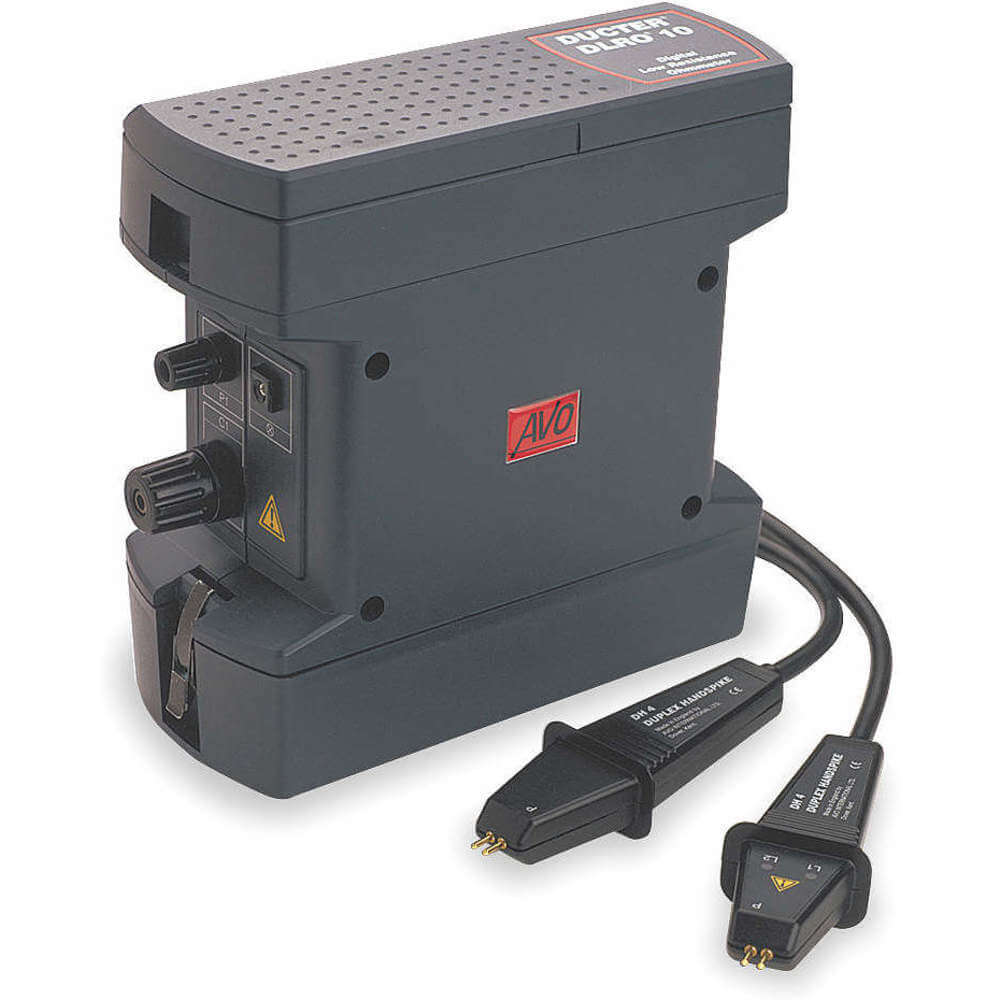

MEGGER DLRO-10 Micro Ohm Meter 1.9999m Ohms-1999.9 Ohms
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€6,039.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Micro Ohm Meter |
| Accuracy | -0.2% to +0.2% |
| Alert Type | Digital Display |
| Asset Tagging | No |
| Auto Ranging | Yes |
| Battery Chemistry | Nickel Metal Hydride |
| Bluetooth Compatible | No |
| Calibration Certificate | Not Included |
| Cat Safety Ratingpim | CAT III 600V |
| Communication Protocol | RS-232 |
| Counts | 19999 |
| Display | LED |
| Display Screen Type | LED |
| Display Size | 4.5" |
| Display Type | Digital |
| Dustproof | Yes |
| Features | Accurate Results In Under Three Seconds, Automatically Detects Continuity In Potential And Current Connections, Visible Warning Of High Voltages Present At The Terminals |
| Includes | (2) Dh4-C Duplex Handspikes, Battery Charger, Cigar Lighter Adapter, Lithium Ion Battery Module, Warranty Card |
| Includes Batteries | Yes |
| Input Impedance | 200 K ohms |
| Insulation Resistance Resolution | 0.1 µ ohms to 100 milli ohms |
| Ip Rating | IP54, IP65 |
| Low Resistance Range | 1.999 µ ohms |
| Maximum Ground Resistance Measurement | 2000 ohms |
| Maximum Insulation Resistance | 2 K ohms |
| Maximum Operating Temperature | 122°F |
| Minimum Ac Voltage Measured | 14V |
| Minimum Ground Resistance Measurement | 0.1 µ ohms |
| Minimum Insulation Resistance | 1.999 µ ohms |
| Minimum Operating Temperature | 14°F |
| Number Of Batteries Required | 1 |
| Number Of Digits | 4 |
| Number Of Records Stored | 700 |
| Operating Voltage | 600V |
| Output Amps | 100 µA to 10A |
| Power Source | Battery |
| Remote Control Compatible | No |
| Resistance Accuracy | +/-0.20% |
| Resistance Range | 1.9999m Ohms to 1999.9 Ohms |
| Test Current | 10A |
| Test Lead Length | 4 ft. |
| Tester Type | Micro Ohmmeter |
| Testing Functions | Low Resistance |
| Tool Height | 8.7" |
| Tool Length | 9.3" |
| Tool Width | 8.7" |
| Usb Data Download Included | No |
| Waterproof | No |
Shipping Info:
| Ship weight (kg) | 5.15 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 29.72 |
| HS code | 9030330040 |
| Country of Origin | GB |
Product Variants
| Product | Model | Display | Power Source | Number Of Digits | Maximum Insulation Resistance | Minimum Insulation Resistance | Output Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

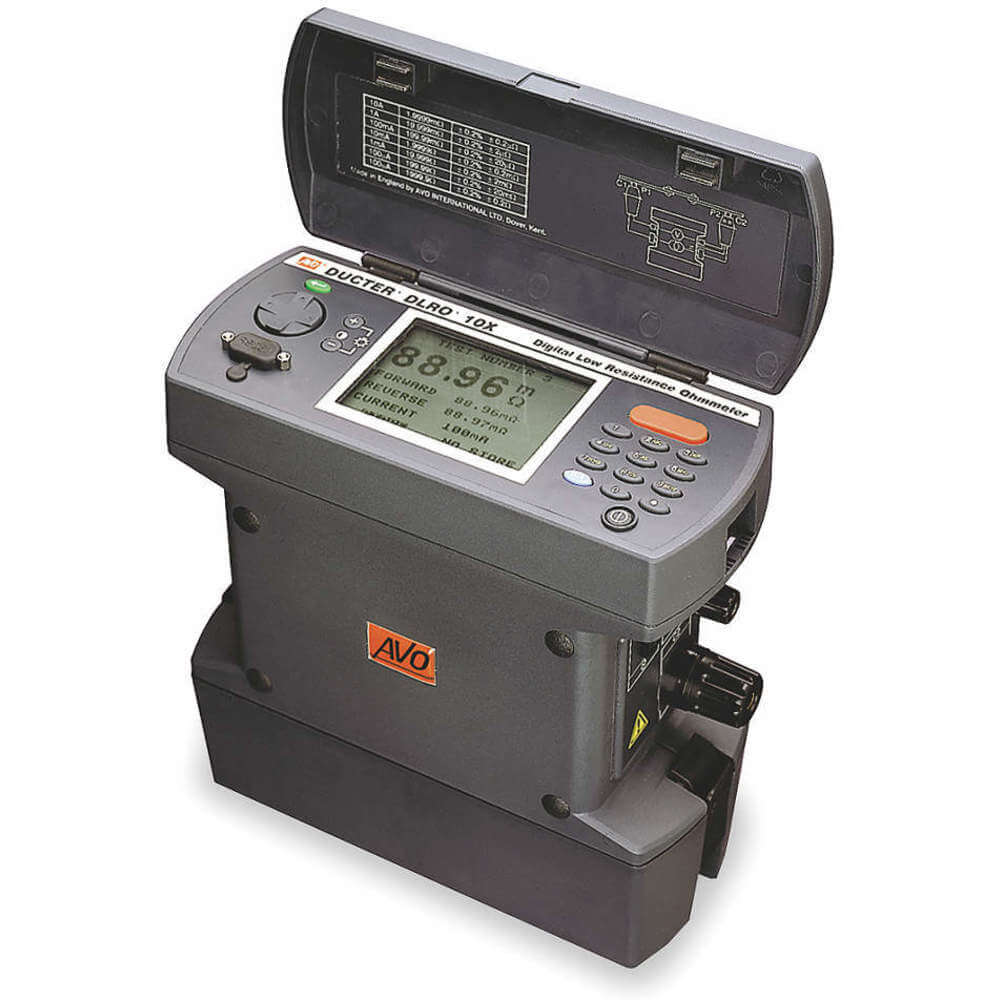

DLRO-10X | LCD | Battery | 4 | 2 K ohms | 1.999 µ ohms | 100 µA to 10A | €9,339.51 |
