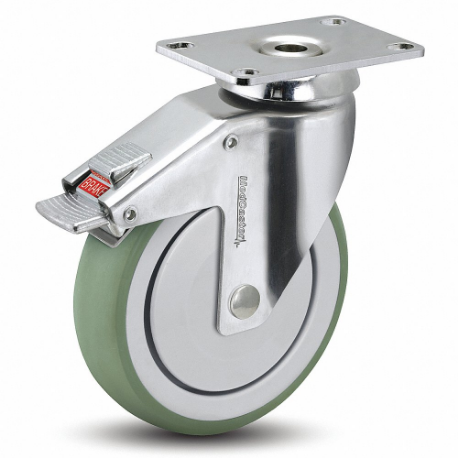

MEDCASTER NG03QDP125DLTP01 Standard Plate Caster, 3 Inch Dia, 4 1/4 Inch Height
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€42.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Medical |
| Brake Type | Directional Lock |
| Caster Brake Type | Directional Lock |
| Caster Frame Material | Nylon |
| Caster Material | Nylon |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Frame Color | Silver |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 200 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 1/4" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( C ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -30°F to +180°F |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Swivel Construction | Kingpin |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Precision Ball |
| Tread Material, Wheel Material | Thermoplastic Rubber |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Polypropylene |
| Wheel Diameter | 3" |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 70 Shore A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Load Rating | Mounting Plate Size | Wheel Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RZ02TPN070TLTP06 | Swivel | D | 1 37/64" x 1 37/64" | 1 37/64" x 1 37/64" | 3/4" | 110 lbs. | 2 1/8" x 2 1/8" | Wheel Bearing | €19.38 | |
 |
RZ02TPN070SWTP06 | Swivel | D | 1 37/64" x 1 37/64" | 1 37/64" x 1 37/64" | 3/4" | 110 lbs. | 2 1/8" x 2 1/8" | Wheel Bearing | €15.84 | |
 |
RZ03TPP090TLTP05 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 7/8" | 140 lbs. | 1 29/32" x 2 5/8" | Ball | €28.97 | |
 |
SS03AMX125DLTP01 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 1 1/4" | 165 lbs. | 2 1/2" x 3 5/8" | Precision Ball | €182.36 | |
 |
CH03AMP125RGTP01 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 1 1/4" | 190 lbs. | 2 1/2" x 3 5/8" | Precision Ball | €47.57 | |
|
SS03AMX125RGTP01 | Rigid | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 1 1/4" | 165 lbs. | 2 1/2" x 3 5/8" | Precision Ball | €123.74 | |
 |
SS03AMX125TLTP01 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 1 1/4" | 165 lbs. | 2 1/2" x 3 5/8" | Precision Ball | €182.36 |
