MATCO-NORCA 330-059 Repair Clamp Three Bolt 1 Inch 304 Stainless Steel
Item: AE7BLAModel: 330-059Cross Ref: 5WMP6
7 In Stock
Ships within 2 days via
10.00% off
€51.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Repair Clamp |
| Bolt Diameter | 3/8" |
| Bolt Material | Steel |
| Bolt Size | 3/8" |
| Clamp Material | Stainless Steel |
| Clamp Material Grade | Grade 304 |
| Features | Punctures Or Splits In Pipe, Stainless Steel Construction Resists Corrosion |
| For Fluid Type | Aromatic Hydrocarbons, Gasoline, Mineral Oils, Natural Gas, Petroleum Oils, Vegetable Oils |
| For Pipe Size | 1" |
| Gasket Coverage | Partial Coverage |
| Gasket Material | Nitrile Rubber |
| Length | 9" |
| Lug Material | Iron |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 212°F |
| Maximum Vacuum Pressure | 150 |
| Metal Detectable | Yes |
| Minimum Operating Temperature | -40°F |
| Number Of Bolts | 3 |
| Nut Material | Steel |
| Outlet Connection | No |
| Overall Length | 9" |
| Product Type | Partial Coverage Clamp |
| Tube Size | 1" |
| Type | Three Bolt |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 7.62 |
| HS code | 7326908588 |
| Country of Origin | US |
Product Details:
- Special Features: For Joining Two Lengths Of Similar Threaded Rod, Temp. Range -40 to 212 F, Pressure Rating 150 PSI
Product Variants
| Product | Model | For Pipe Size | Type | Overall Length | Bolt Size | Material | Metal Detectable | Clamp Material | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
330-029 | 3/8" | Three Bolt | 9" | 3/8" | - | Yes | Stainless Steel | - | €51.98 | |
|
330-0312 | 1/2" | Four Bolt | 12" | 3/8" | - | Yes | Stainless Steel | - | €60.46 | |
|
330-0412 | 3/4" | Four Bolt | 12" | - | - | Yes | Stainless Steel | - | €70.70 | |
|

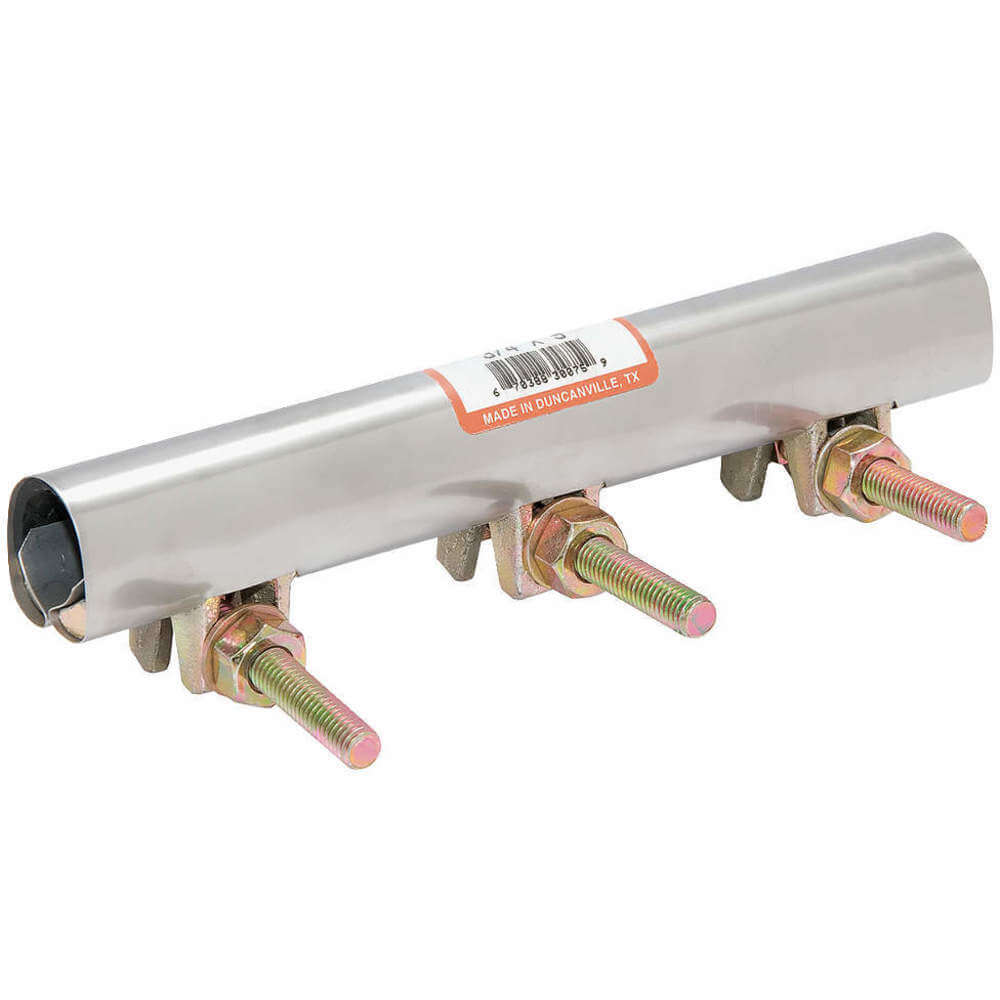

330-049 | 3/4" | Three Bolt | 9" | - | - | Yes | Stainless Steel | - | €53.80 | |
|
330-0512 | 1" | Four Bolt | 12" | 3/8" | - | Yes | Stainless Steel | - | €75.45 | |
|
330-0612 | 1 1/4" | Four Bolt | 12" | 3/8" | - | Yes | Stainless Steel | - | €82.36 | |
 |

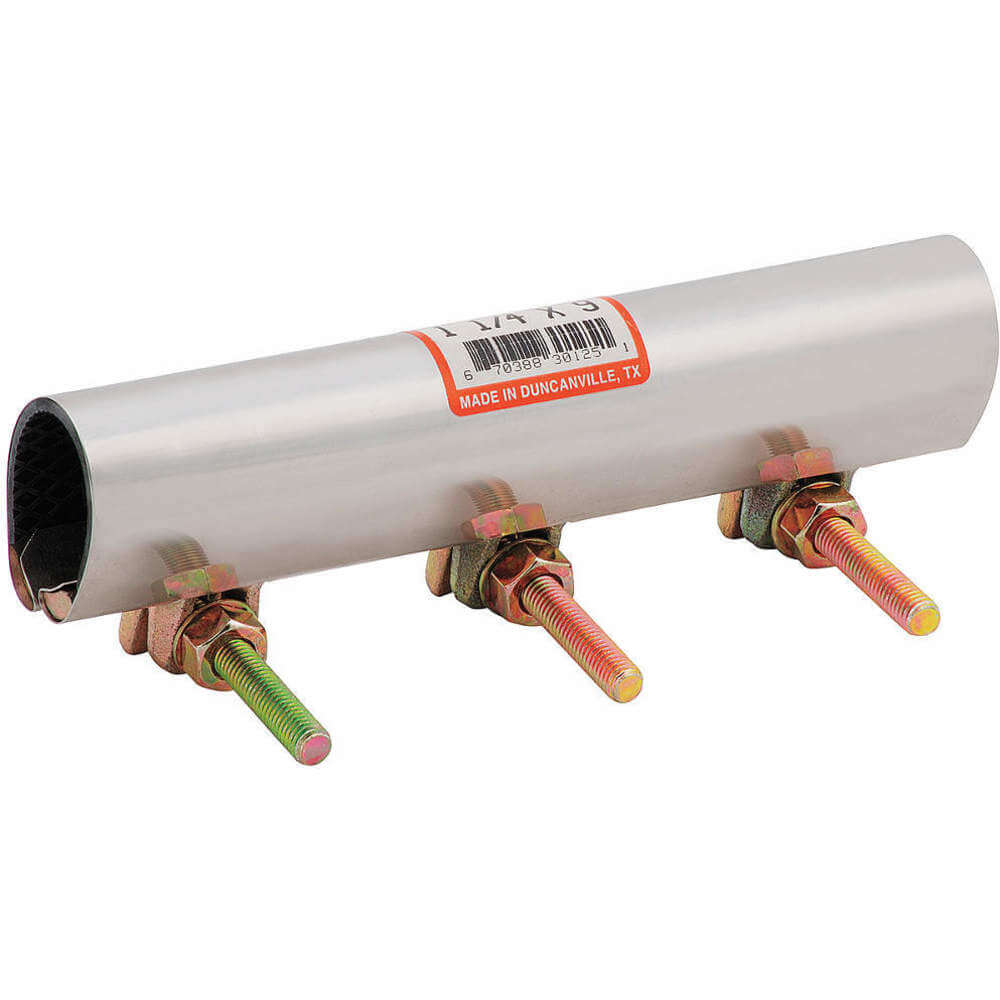

330-069 | 1 1/4" | Three Bolt | 9" | 3/8" | - | Yes | Stainless Steel | - | €65.07 |
