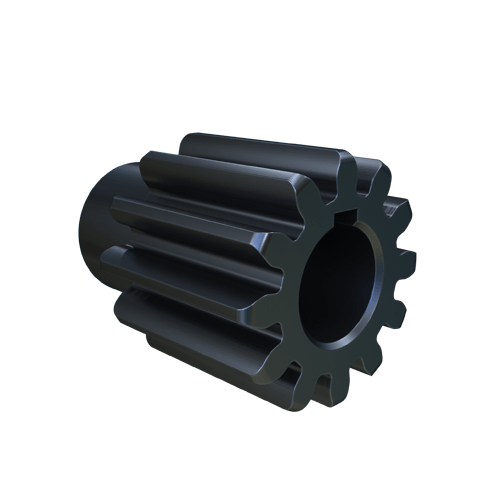

MARTIN SPROCKET TS1012BS 5/8 Spur Gear, 10 DP, 20 Deg., 12 Teeth, 1.2 Inch Pitch Dia., Bore To Size, Steel
Item: AL4NAHModel: TS1012BS 5/8
7 In Stock
Ships within 2 days via
€110.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 5/8" |
| Diametral Pitch | 10 |
| Face Width | 1 1/4" |
| Hub Dia. | 0.9063" |
| Hub Projection | 5/8" |
| Hub Type | B |
| Key Way Size | 0.1875" x 0.0938" |
| Length | 1 7/8" |
| Material | Steel |
| No. Of Teeth | 12 |
| Pitch Dia. | 1 1/5" |
| Pressure Angle | 20° |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Key Way Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1015BS 3/4 | 1 1/2" | 14.5° | 15 | 1" | 1.219" | 3/4" | Bored to Size External Tooth | 0.1875" x 0.0938" | €127.05 | |
 |
S1016BS 3/4 | 1 3/5" | 14.5° | 16 | 1" | 1.313" | 3/4" | Bored to Size External Tooth | 0.1875" x 0.0938" | €142.07 | |
 |
S1018BS 3/4 | 1 4/5" | 14.5° | 18 | 1" | 1.5313" | 3/4" to 7/8" | Bored to Size | 0.1875" x 0.0938" | €152.63 | |
 |
S1018BS 7/8 | 1 4/5" | 14.5° | 18 | 1" | 1.531" | 7/8" | Bored to Size External Tooth | 0.1875" x 0.0938" | €152.63 | |
 |
S1020BS 1 | 2" | 14.5° | 20 | 1" | 1.719" | 1" | Bored to Size External Tooth | 1/4" x 1/8" | €164.66 | |
 |
S1020BS 3/4 | 2" | 14.5° | 20 | 1" | 1.719" | 3/4" | Bored to Size External Tooth | 0.1875" x 0.0938" | €164.66 | |
 |
S1020BS 7/8 | 2" | 14.5° | 20 | 1" | 1.719" | 7/8" | Bored to Size External Tooth | 0.1875" x 0.0938" | €164.66 |
