FREE delivery on orders over €150
MARTIN SPROCKET S1222BS 1 Spur Gear, 12 DP, 14.5 Deg., 1.833 Inch Pitch Dia., Bore To Size, Steel
Item: AK3BUMModel: S1222BS 1
7 In Stock
Ships within 2 days via
€142.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1" |
| Diametral Pitch | 12 |
| Face Width | 3/4" |
| Hub Dia. | 1 9/16" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Key Way Size | 1/4" x 1/8" |
| Length | 1 1/4" |
| Material | Steel |
| No. Of Teeth | 22 |
| Pitch Dia. | 1.833" |
| Pressure Angle | 14.5° |
| Product Datasheet | martin-sprocket-c10112.pdf |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1222BS 5/8 | 1.833" | 14.5° | 22 | 3/4" | 1 9/16" | 5/8" to 7/8" | Bored to Size | 1/2" | €142.07 | |
|
S1218BS 5/8 | 1.4999" | 14.5° | 18 | 3/4" | 1 1/4" | 5/8" to 11/16" | Bored to Size | 1/2" | €118.23 | |
 |
S1224BS 1 | 2" | 14.5° | 24 | 3/4" | 1 3/4" | 1" | Bored to Size External Tooth | 1/2" | €152.63 | |
 |
S1224BS 5/8 | 2" | 14.5° | 24 | 3/4" | 1 3/4" | 5/8" | Bored to Size External Tooth | 1/2" | €152.63 | |
 |
S1222BS 3/4 | 1.833" | 14.5° | 22 | 3/4" | 1.563" | 3/4" | Bored to Size External Tooth | 1/2" | €142.07 | |
 |
S1221BS 3/4 | 1 3/4" | 14.5° | 21 | 3/4" | 1 1/2" | 3/4" | Bored to Size External Tooth | 1/2" | €127.05 | |
 |

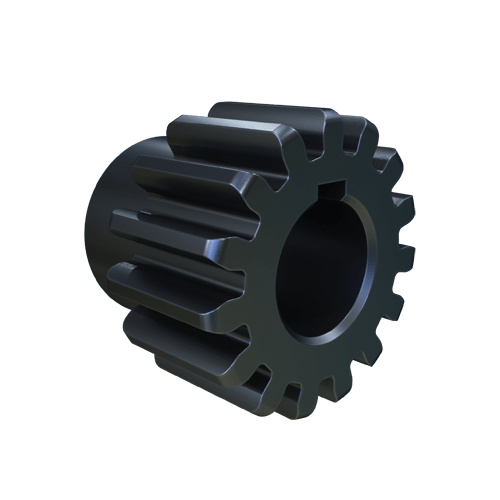

S1215BS 5/8 | 1 1/4" | 14.5° | 15 | 3/4" | 1" | 5/8" | Bored to Size External Tooth | 1/2" | €108.48 |
