MARTIN SPROCKET M1020 Miter Gear, 10 Diametral Pitch, 0.75 Inch Min. Bore, 0.939 Inch Max Bore, Steel
Item: AK2XWVModel: M1020
7 In Stock
Ships within 2 days via
€120.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 0.75" to 0.939" |
| Diametral Pitch | 10 |
| Face Width | 11/25" |
| Hub Dia. | 1 5/8" |
| Hub Projection | 0.813" |
| Hub Type | No Screws |
| Length | 1 23/64" |
| Material | Steel |
| No. Of Teeth | 20 |
| Outside Dia. | 2.141" |
| Pitch Dia. | 2" |
| Pressure Angle | 20° |
| Series | M Series |
| Type | Plain Reborable |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 3.45 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 5.44 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Material | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Hub Projection | Pressure Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

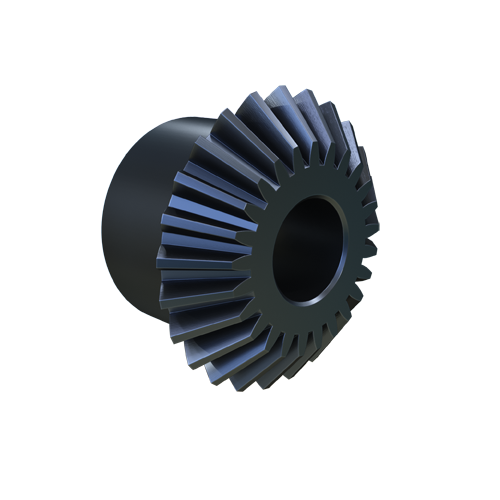

M1025A | 2 1/2" | Carbon Steel | 25 | 0.55" | 2" | 0.875" to 1.126" | 0.938" | 20° | €158.02 | |
 |
M1020A | 2" | Steel | 20 | 11/25" | 1 5/8" | 0.5" to 0.939" | 0.813" | 20° | €120.55 | |
 |

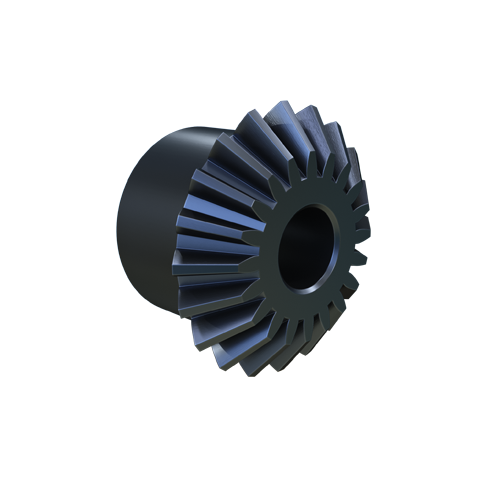

M1020B | 2" | Steel | 20 | 11/25" | 1 5/8" | 0.625" to 0.939" | 0.813" | 20° | €120.55 | |
 |
M1025 | 2 1/2" | Carbon Steel | 25 | 0.55" | 2" | 0.75" to 1.126" | 0.938" | 20° | €158.02 | |
 |
M1025B | 2 1/2" | Steel | 25 | 0.55" | 2" | 1" to 1.126" | 0.938" | 20° | €158.02 | |
|
M1020C | 2" | Carbon Steel | 20 | 11/25" | 1 5/8" | 0.875" to 0.9385" | 0.813" | 20° | €120.55 | |
|
M1030 | 3" | Carbon Steel | 30 | 16/25" | 2" | 0.75" to 1.126" | 1" | 20° | €185.89 |
