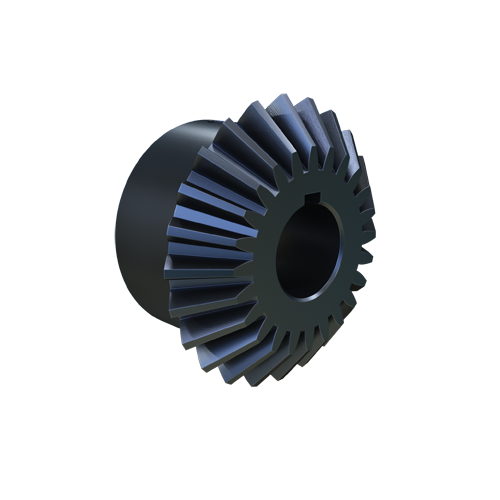

MARTIN SPROCKET HMK824A Miter Gear, 8 Diametral Pitch, 3 Inch Pitch Dia., Bore To Size, Steel
Item: AK3BPLModel: HMK824A
7 In Stock
Ships within 2 days via
€227.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 1" |
| Diametral Pitch | 8 |
| Face Width | 16/25" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 1" |
| Hub Type | Hub With Set Screw |
| Key Way Size | 1/4" x 1/8" |
| Length | 1 49/64" |
| Material | Steel |
| No. Of Teeth | 24 |
| Pitch Dia. | 3" |
| Pressure Angle | 20° |
| Series | HMK Series |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.94 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 8.08 |
| Ship width (cm) | 8.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Material | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Key Way Size | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

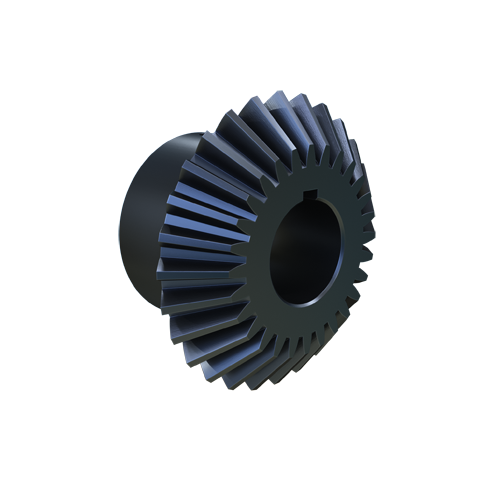

HMK828B | 3 1/2" | Carbon Steel | 28 | 3/4" | 2 1/2" | 1 1/4" | 1/4" x 1/8" | 1 1/4" | €390.93 | |
 |

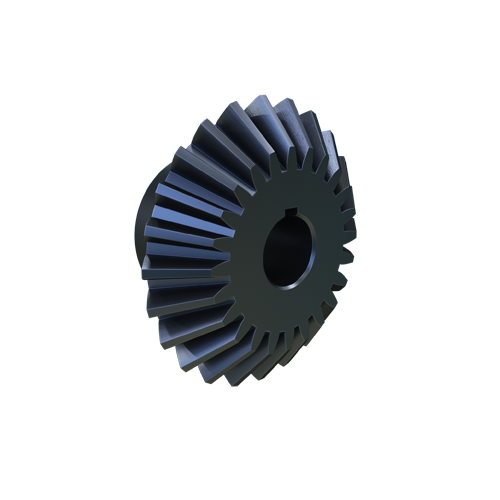

HMK824 | 3" | Steel | 24 | 16/25" | 1 3/4" | 3/4" | 3/16" x 3/32" | 0.813" | €227.35 | |
 |

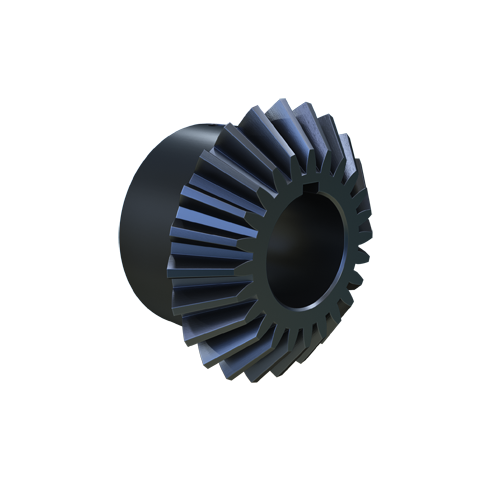

HMK824B | 3" | Steel | 24 | 16/25" | 2 1/2" | 1 1/4" to 1 1/4" | 1/4" x 1/8" | 1" | €227.35 | |
 |

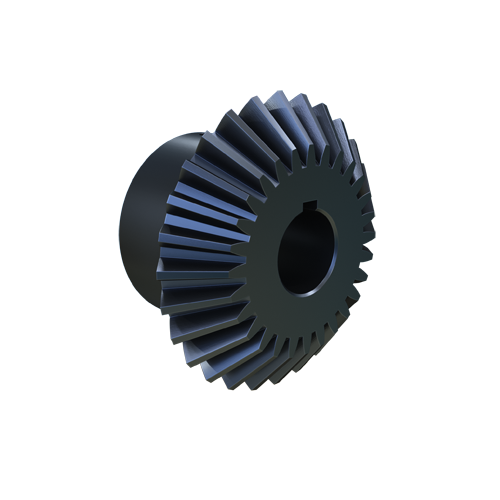

HMK828 | 3 1/2" | Steel | 28 | 3/4" | 2 1/2" | 1" | 1/4" x 1/8" | 1 1/4" | €390.93 | |
 |
HMK828A | 3 1/2" | Carbon Steel | 28 | 3/4" | 2 1/2" | 1 3/16" | 1/4" x 1/8" | 1 1/4" | €390.93 |
