MARTIN SPROCKET HMK1020A Miter Gear, 10 Diametral Pitch, 2 Inch Pitch Dia., Bore To Size, Steel
Item: AK3BPXModel: HMK1020A
7 In Stock
Ships within 2 days via
€162.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 1/2" |
| Diametral Pitch | 10 |
| Direction Of Rotation | Right Angle |
| Face Width | 11/25" |
| Gear Ratio | 1:1 |
| Hub Dia. | 1 5/8" |
| Hub Projection | 0.813" |
| Hub Type | Hub With Set Screw |
| Key Way Size | 1/8" x 1/16" |
| Length | 1 23/64" |
| Material | Carbon Steel |
| No. Of Teeth | 20 |
| Outside Dia. | 2.141" |
| Pitch Dia. | 2" |
| Pressure Angle | 20° |
| Product Datasheet | martin-sprocket-hm1025.pdf |
| Series | HMK Series |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 3.45 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 5.44 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Face Width | Outside Dia. | Hub Dia. | Hub Projection | Material | Diametral Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

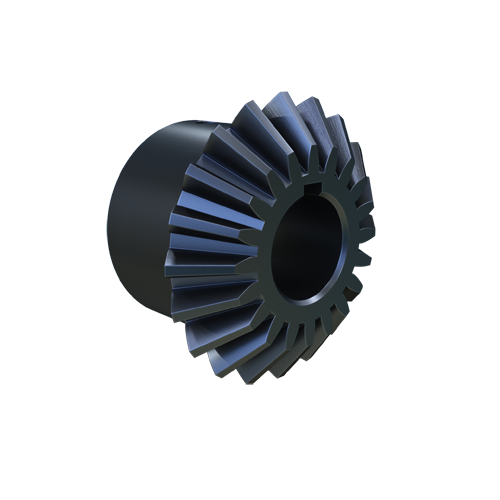

HMK1020 | 3/4" | 2" | 11/25" | 2.141" | 1 5/8" | 0.813" | Steel | 10 | €162.58 | |
|

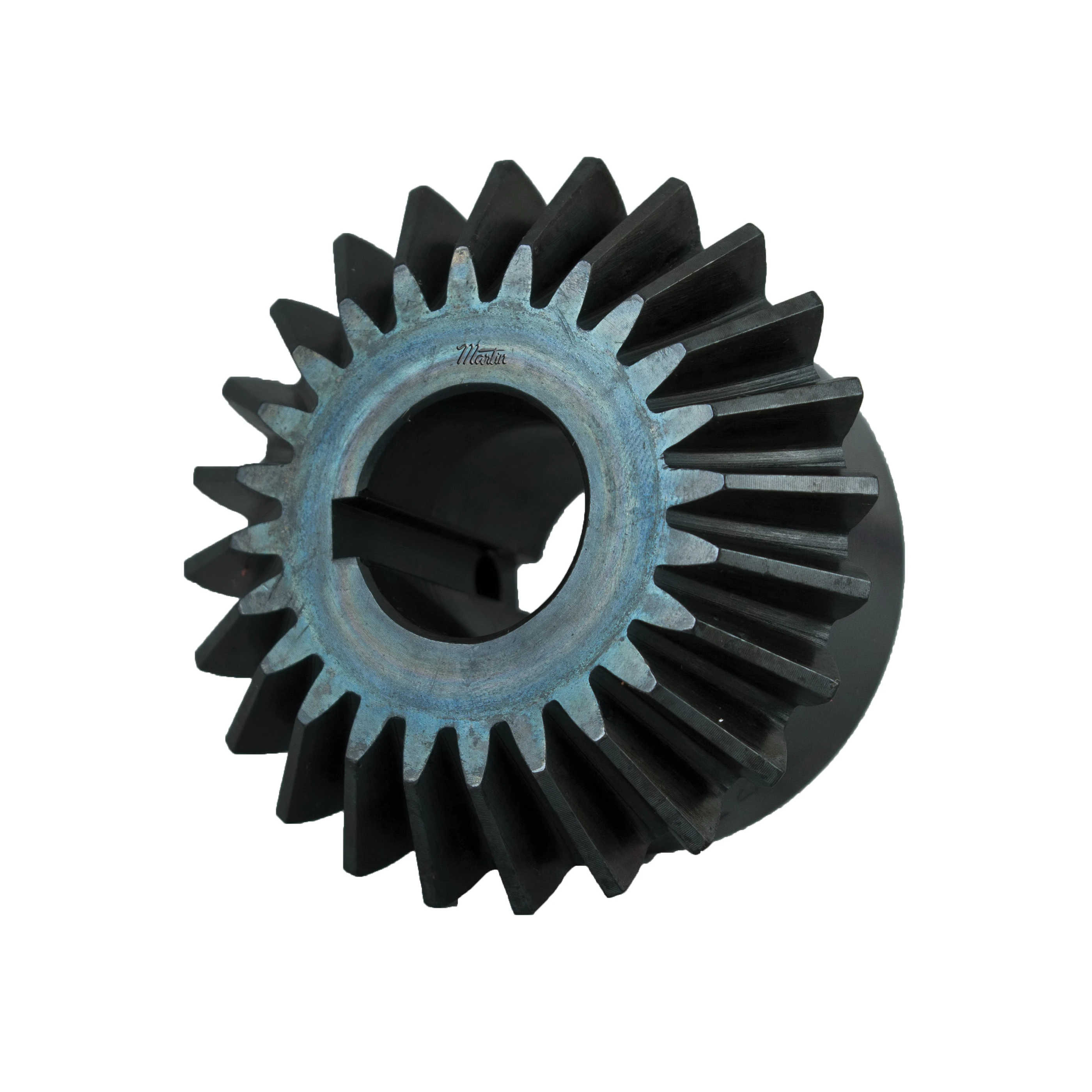

HMK1025A | 7/8" | 2 1/2" | 0.55" | 2.641" | 2" | 0.938" | Carbon Steel | 10 | €196.20 | |
 |

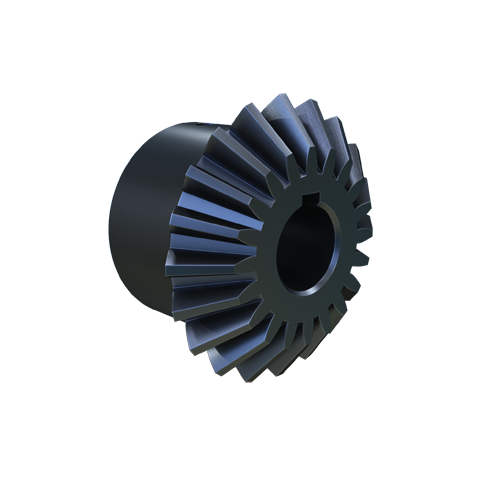

HMK1020B | 5/8" | 2" | 11/25" | 2.141" | 1 5/8" | 0.813" | Steel | 10 | €162.58 | |
 |

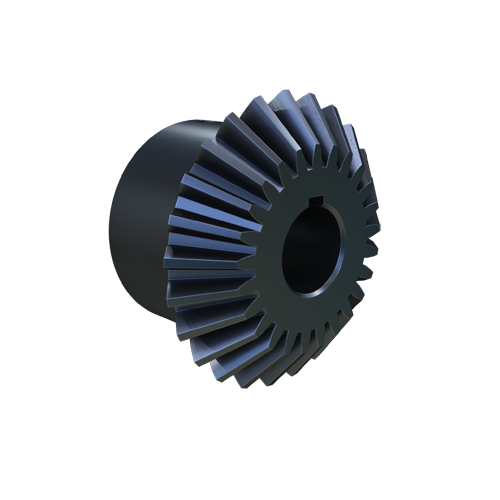

HMK1025 | 3/4" | 2 1/2" | 0.55" | 2.641" | 2" | 0.938" | Steel | 10 | €196.20 | |
 |

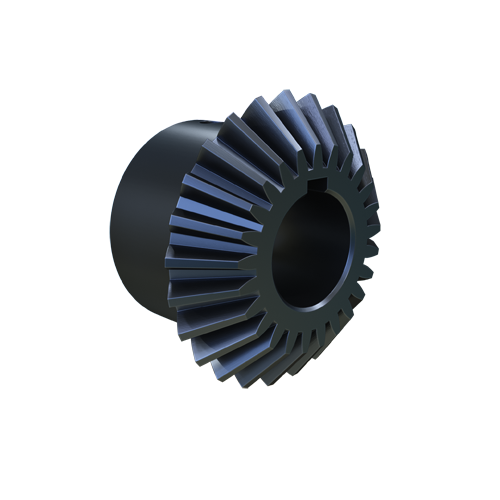

HMK1025B | 1" | 2 1/2" | 0.55" | 2.641" | 2" | 0.938" | Steel | 10 | €196.20 | |
 |

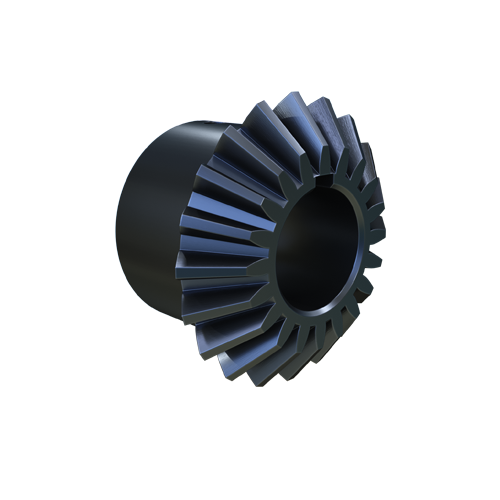

HMK1020C | 7/8" | 2" | 11/25" | 2.141" | 1 5/8" | 0.813" | Steel | 10 | €162.58 |
