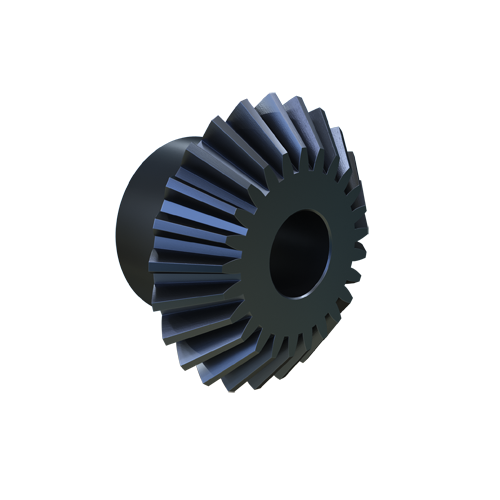

MARTIN SPROCKET HM525B Miter Gear, 5 Diametral Pitch, 5 Inch Pitch Dia., 2.002 Inch Bore, Steel
Item: AK3BPBModel: HM525B
7 In Stock
Ships within 2 days via
€671.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 1.75" to 2.002" |
| Diametral Pitch | 5 |
| Direction Of Rotation | Right Angle |
| Face Width | 1.115" |
| Gear Ratio | 1:1 |
| Hub Dia. | 3 1/2" |
| Hub Projection | 1 3/4" |
| Hub Type | No Screws |
| Length | 3" |
| Material | Carbon Steel |
| No. Of Teeth | 25 |
| Outside Dia. | 5.283" |
| Pitch Dia. | 5" |
| Pressure Angle | 20° |
| Product Datasheet | martin-sprocket-hm1025.pdf |
| Series | HM Series |
| Type | Plain Reborable |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 13.41 |
| Ship width (cm) | 13.41 |
| Country of Origin | US |
