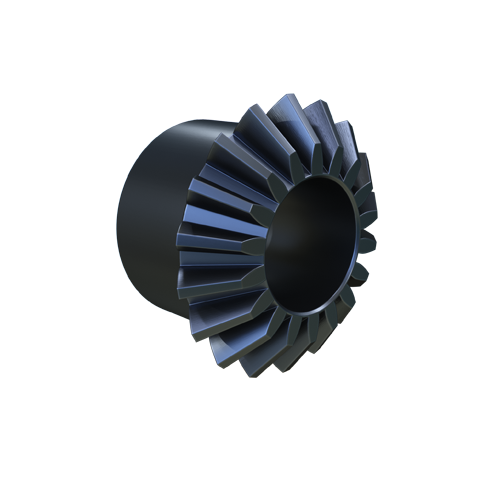

MARTIN SPROCKET HM1218B Miter Gear, 12 Diametral Pitch, 18 Teeth, 1.5 Inch Pitch Dia., Steel
Item: AK3BQKModel: HM1218B
7 In Stock
Ships within 2 days via
€120.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miter Gears |
| Bore Dia. | 0.75" to 0.626" |
| Diametral Pitch | 12 |
| Face Width | 8/25" |
| Hub Dia. | 1 1/4" |
| Hub Projection | 5/8" |
| Hub Type | No Screws |
| Length | 1 1/64" |
| Material | Steel |
| No. Of Teeth | 18 |
| Outside Dia. | 1.618" |
| Pitch Dia. | 1 1/2" |
| Pressure Angle | 20° |
| Series | HM Series |
| Type | Plain Reborable |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 4.11 |
| Ship width (cm) | 4.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Material | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Hub Projection | Pressure Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

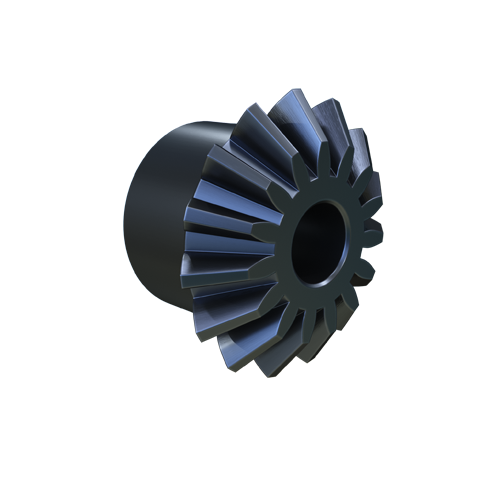

HM1215 | 1 1/4" | Carbon Steel | 15 | 0.27" | 1" | 0.375" to 0.501" | 1/2" | 20° | €112.91 | |
 |

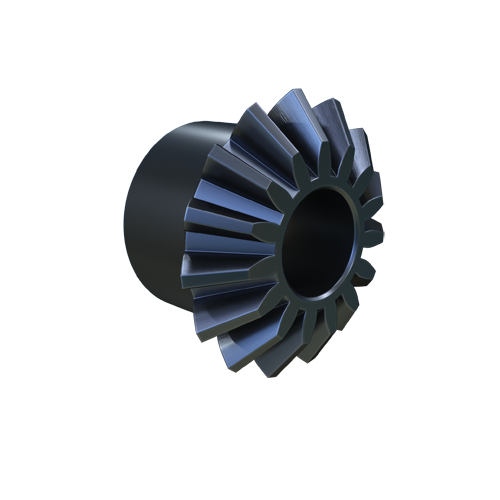

HM1215B | 1 1/4" | Steel | 15 | 0.27" | 1" | 0.5" to 0.501" | 1/2" | 20° | €112.91 | |
 |
HM1218 | 1 1/2" | Carbon Steel | 18 | 8/25" | 1 1/4" | 0.5" to 0.626" | 5/8" | 20° | €120.02 | |
 |

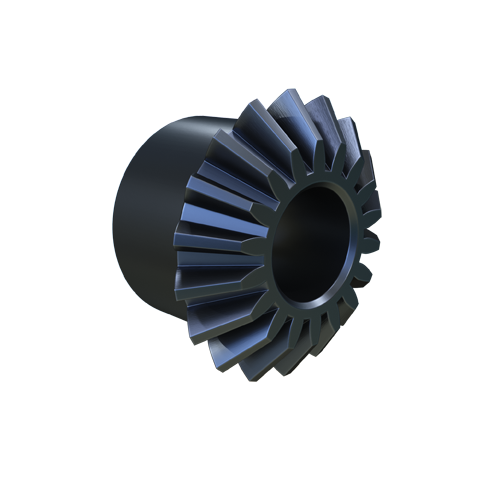

HM1218A | 1 1/2" | Steel | 18 | 8/25" | 1 1/4" | 0.625" to 0.626" | 5/8" | 20° | €120.02 | |
|
HM1221 | 1 3/4" | Carbon Steel | 21 | 0.39" | 1 3/8" | 0.5" to 0.6885" | 0.688" | 20° | €124.59 | |
|
HM1221B | 1 3/4" | Carbon Steel | 21 | 0.39" | 1 3/8" | 0.625" to 0.6885" | 0.688" | 20° | €124.59 | |
|
HM1224 | 2" | Carbon Steel | 24 | 0.43" | 1 1/2" | 0.5" to 0.8135" | 0.688" | 20° | €148.90 |
