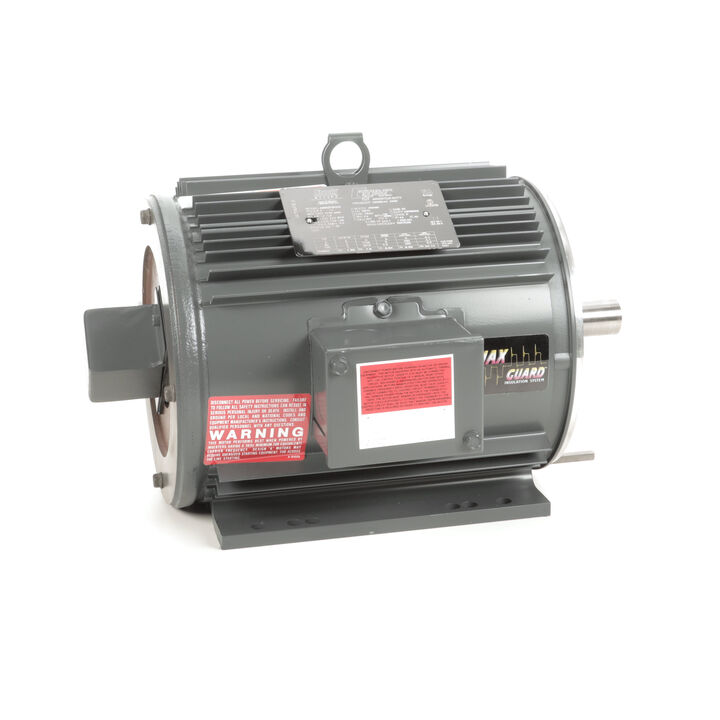

MARATHON MOTORS LM33591 AAN4S2TC61Q10 Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 1770 RPM
Get it by Tuesday, Aug 25
€2,093.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Design Code | Inv |
| Dimension S | 15.88" x 11.69" x 10.41" |
| Drive End Bearing Size | 6207 |
| Duty Cycle | Continuous |
| Efficiency | 83.5% |
| Electrical Phase | 3 |
| Electrical Type | Squirrel Cage Inverter Duty |
| Enclosure | Tenv |
| Enclosure Type | Tenv (Totally Enclosed Non Ventilated) |
| Family Series | Leeson Motors |
| Frame Length | 9 1/2" |
| Full Load Amps | 8.2A |
| Insulation Class | Class F |
| Kva Code | P |
| Kw | 1.5 kW |
| Motor Orientation | Horizontal |
| Mounting | Rigid Base |
| Mounting Type | C Face |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6206 |
| Overall Length | 15 22/25" |
| Phase | 3 |
| Power Factor | 69 |
| Product Datasheet | leeson-lm33591.pdf |
| Rotation | Reversible |
| Shaft Dia. | 1.125 |
| Shaft Extension | 2.62" |
| Shaft Length | 2.62 |
| Shaft Size | 1.13" x 2.62" |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Thermal Protection | NO Protection |
| Torque Rating | 9 lbs.-ft. |
| Type | Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 33.3 |
| Ship height (cm) | 33.99 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| Country of Origin | MX |
