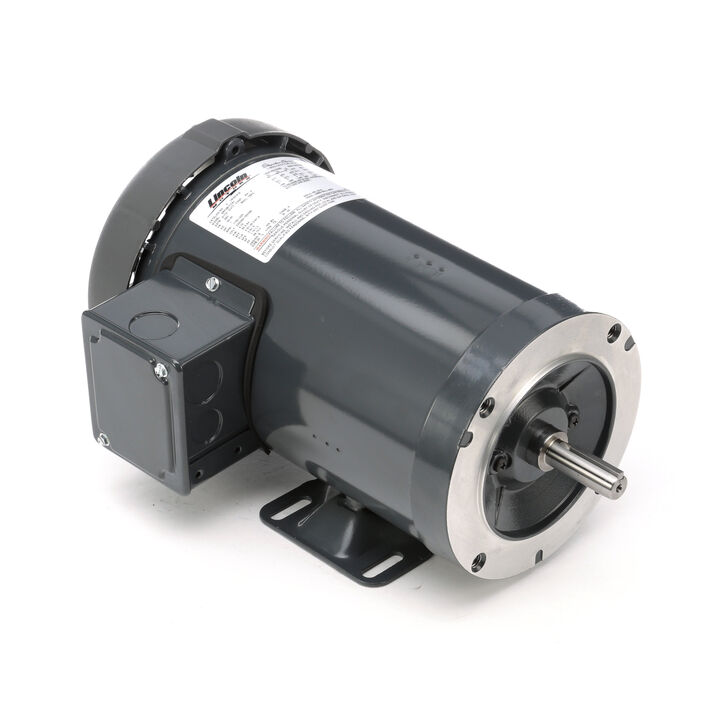

MARATHON MOTORS LM33575 AAF4B5TCN6026 General Purpose Motor, 5 HP, 3 Phase, 60 Hz, 208-230/460V, 1760 RPM
Get it by Tuesday, Aug 25
€1,074.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 12.6/6.3/15.2-14.4/7.6-7.2A |
| Design Code | B |
| Dimension S | 14.96" x 11.51" x 11.51" |
| Drive End Bearing Size | 6206 |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Electrical Type | Squirrel Cage Induction Run |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors |
| Frame Length | 9 1/2" |
| Frequency | 1.2 Hz , 60 Hz |
| Height | 12 22/25" |
| Hp | 5 hp |
| Insulation Class | Class F |
| Kva Code | J |
| Kw | 3.7 kW |
| Length | 17.94" |
| Motor Orientation | Horizontal |
| Mounting Type | Round |
| No. Of Speeds | 1 |
| Nominal Voltage | 208/240/480V AC |
| Opp Drive End Bearing Size | 6205 |
| Overall Length | 14 24/25" |
| Phase | 3 |
| Power Factor | 83 |
| Product Datasheet | leeson-lm33575.pdf |
| Resistance Main | 2.68 ohms |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 1.125 |
| Shaft Extension | 2.62" |
| Shaft Length | 2.62 |
| Shaft Size | 1.125" x 2.62" |
| Shaft Type | T |
| Speed | 1700-1800 RPM , 1760 RPM |
| Thermal Protection | NO Protection |
| Type | 4 Pole Squirrel Cage Induction Run |
| Voltage Ac | 208V AC, 230V AC, 460V AC |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
