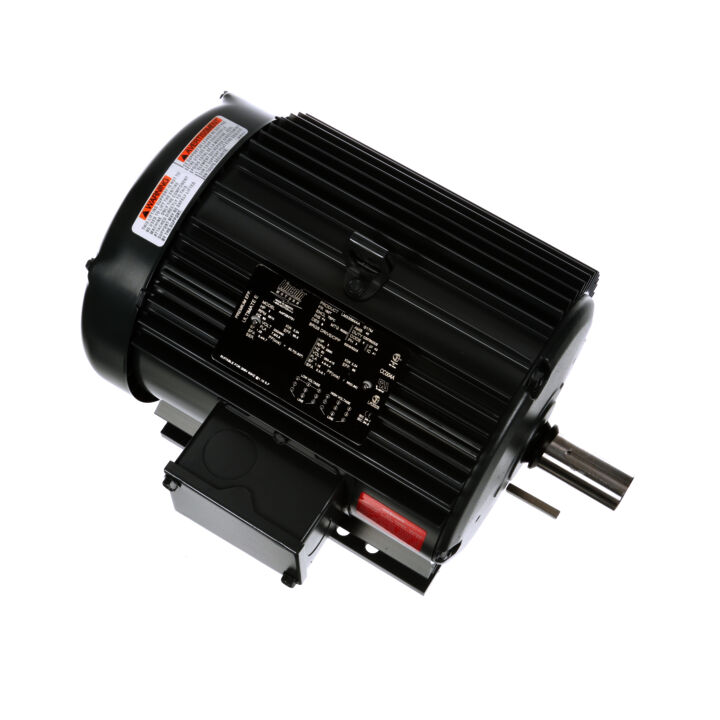

MARATHON MOTORS LM33564 AAF2B3T61 General Purpose Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 3510 RPM
Get it by Tuesday, Aug 25
€1,003.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps Rating | 7.8/3.9A |
| Dimension S | 14.96" x 11.51" x 10.41" |
| Drive End Bearing Size | 6206 |
| Efficiency | 86.5% |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors |
| Frequency | 1.2 Hz , 60 Hz |
| Full Load Amps | 7.8A |
| Height | 12 22/25" |
| Insulation Class | Class F |
| Kw | 2.2 kW |
| Length | 17.94" |
| Mounting Type | Rigid Base |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6205 |
| Phase | 3 |
| Product Datasheet | leeson-lm33564.pdf |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 1.125 |
| Shaft Length | 2.75 |
| Shaft Size | 1 1/8" x 2 3/4" |
| Speed | 3400-3600 RPM |
| Temp. Rating | 40°C |
| Type | 2 Pole Squirrel Cage Induction Run |
| Voltage Ac | 230/460V AC |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
