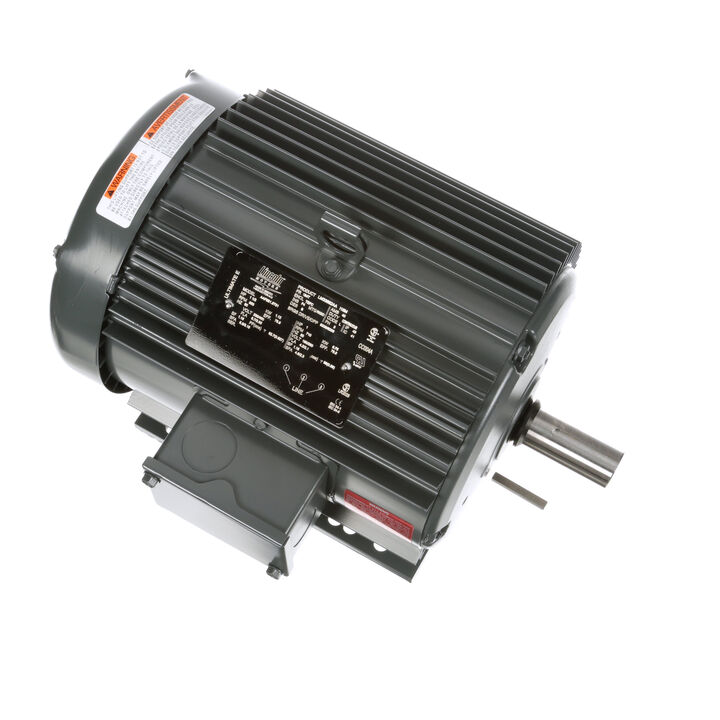

MARATHON MOTORS LM33562 AAF8B1.5T61 General Purpose Motor, 1.5 HP, 3 Phase, 60 Hz, 230/460V, 853 RPM
Get it by Tuesday, Aug 25
€1,441.14 /unit
This product can only be shipped in multiples of 5Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 5.7/2.85/4.2/2.1A |
| Amps Rating | 5.7/2.85A |
| Design Code | B |
| Dimension S | 14.96" x 11.51" x 10.41" |
| Drive End Bearing Size | 6206 |
| Duty Cycle | Continuous |
| Efficiency | 78.9% |
| Electrical Phase | 3 |
| Electrical Type | Squirrel Cage Induction Run |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled (Tefc) |
| Family Series | Leeson Motors |
| Frame Length | 9 1/2" |
| Frequency | 60 Hz |
| Full Load Amps | 5.7A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Kva Code | L |
| Kw | 1.1 kW |
| Motor Orientation | Horizontal |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6205 |
| Overall Length | 14 24/25" |
| Phase | 3 |
| Power Factor | 62.7 |
| Product Datasheet | leeson-lm33562.pdf |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1.125 |
| Shaft Extension | 2 3/4" |
| Shaft Length | 2.75 |
| Shaft Size | 1.13" x 2.75" |
| Shaft Type | T |
| Speed | 853 RPM |
| Thermal Protection | NO Protection |
| Torque Rating | 9.17 lbs.-ft. |
| Type | 8 Pole Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
Documentation:
