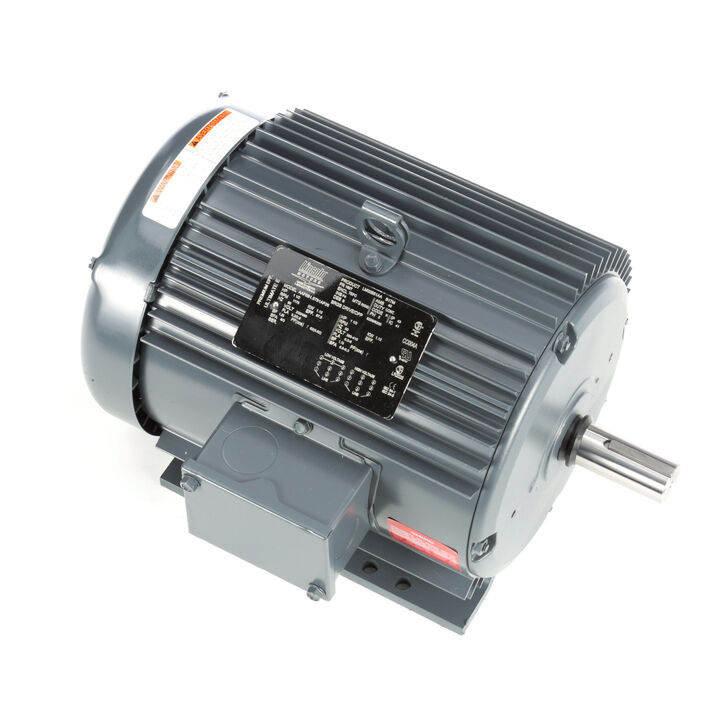

MARATHON MOTORS LM33561 AAF6B1.5T61AP26 General Purpose Motor, 1.5 HP, 3 Phase, 60 Hz, 230/460V, 1175 RPM
Get it by Tuesday, Aug 25
€985.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 5.2/2.6/6.5-6A |
| Amps Rating | 5.2/2.6A |
| Design Code | B |
| Dimension S | 14.96" x 11.51" x 10.41" |
| Drive End Bearing Size | 6206 |
| Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Electrical Type | Squirrel Cage Induction Run |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled (Tefc) |
| Family Series | Leeson Motors |
| Frame Length | 9 1/2" |
| Full Load Amps | 5.2A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Kva Code | K |
| Kw | 1.1 kW |
| Motor Orientation | Horizontal |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 6205 |
| Overall Length | 14 24/25" |
| Phase | 3 |
| Power Factor | 62 |
| Product Datasheet | leeson-lm33561.pdf |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 1.125 |
| Shaft Extension | 2 3/4" |
| Shaft Length | 2.75 |
| Shaft Size | 1.13" x 2.75" |
| Shaft Type | T |
| Speed | 1100-1200 RPM , 1175 RPM |
| Thermal Protection | NO Protection |
| Torque Rating | 6.71 lbs.-ft. |
| Type | Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 33.99 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| Country of Origin | MX |
