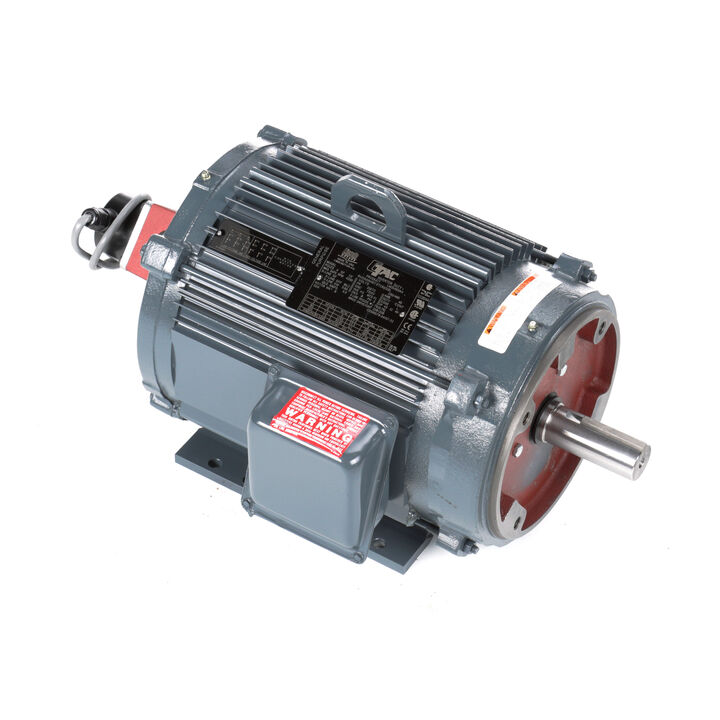

MARATHON MOTORS LM31463 AAN4S7.5TC61Q15 Encoder Motor, 7.50 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, Jul 3
€5,856.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Amps | 21/10.5A |
| Assembly/box Mounting | F1, F2 Capable |
| Code | L |
| Constant Torque | 2000:1 |
| Design | INV, L |
| Design Code | Inv |
| Drive End Bearing Size | 208 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 90.2% |
| Electrical Type | Squirrel Cage, Inverter Duty |
| Enclosure Type | Tenv |
| Frame | 215TC |
| Frame Length | 9 1/2" |
| Frame Material | Aluminum |
| Frame Size | 215TC |
| Frequency | 60 Hz |
| Full Load Amps | 21/10.5A |
| Height | 12.46" |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 100:1 |
| Inverter Load Type | Constant |
| Ip Code | 43 |
| Kva Code | L |
| Length | 22.54" |
| Material | Aluminum |
| Max. Speed | 1800 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face Footed Rigid Base |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 5.6 kW |
| Packaging | B |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 76 |
| Resistance Main | 1.02 ohms |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.13" |
| Shaft Type | T |
| Special Features | Inverter Ready |
| Speed | 1700-1800 RPM |
| Starting Method | Inverter Only |
| Thermal Protection | Thermostat |
| Torque | 22.3 lbs.-ft. |
| Type | Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Width | 12.91" |
Shipping Info:
| Ship weight (kg) | 103.95 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
Product Details:
- Eff 100%: 90.2
- Bearing OPE: 206
- CC Number: EXEMPT
- Bearing PE: 208
- Winding: K2134177
- GROUP: 1
- Paint: GRAY - LINCOLN
