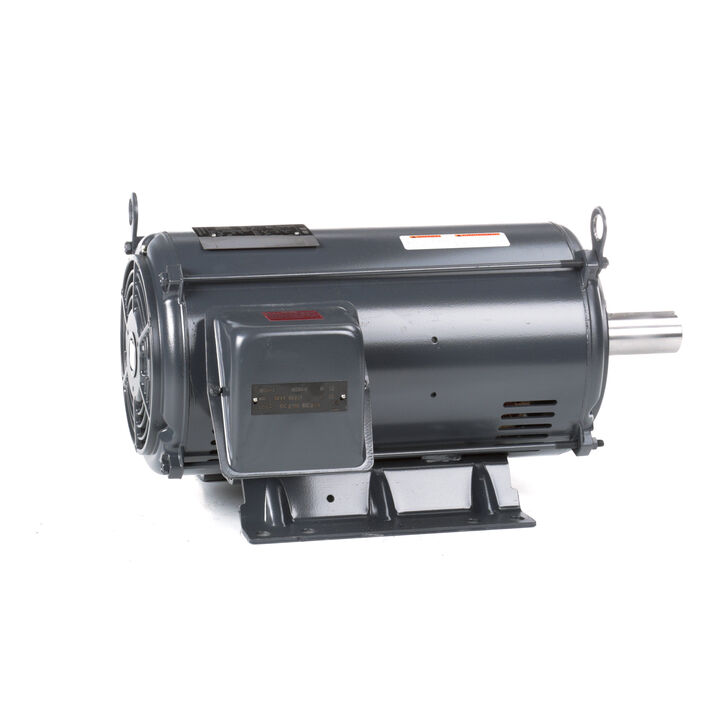

MARATHON MOTORS LM30097 SSD2P25/30T6006YEH2 Elevator Duty Motor, 25 and 30 HP, 3 Ph, 60 Hz, 200 and 200V, 3600 and 3600 RPM
Get it by Wednesday, Feb 25
€2,861.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 66.5/80A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | Exempt |
| Code | E |
| Design Code | Special |
| Drive End Bearing Size | 309 |
| Drive End Bearing Type | Ball |
| Efficiency | 91%, 90.2% |
| Efficiency @ 100% | 91% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Drip Proof |
| Frame | 256T |
| Frame Length | 15.45" |
| Frame Material | Rolled Steel |
| Frame Size | 256T |
| Frequency | 60 Hz |
| Full Load Amps | 80A |
| Hazardous Location | Not Available |
| Hp | 25 hp |
| Insulation Class | Class F |
| Ip Code | IP12 |
| Kw | 18.7 kW |
| Lubrication | Standard |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid |
| Nameplate Rpm | 3600 RPM |
| Nema Design | E |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 208 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-SS86503LN-1545 |
| Output Kw | 18.7/22.4 kW |
| Overall Length | 22 8/25" |
| Packaging | B |
| Paint | Lincoln Gray |
| Phase | 3 |
| Power | 18.7 kW |
| Power Factor | 88.3 |
| Resistance Main | 0.365 ohms |
| Rotation Type | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Extension | 4" |
| Shaft Type | T |
| Speed Range | Not Available |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Type | TDR |
| Voltage | 200V |
| Winding | K2152192 |
Shipping Info:
| Ship weight (kg) | 105.75 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 76.68 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Details:
- Eff 75%: 92.4
- Bearing OPE: 208
- CC Number: EXEMPT
- Bearing PE: 309
- Winding: K2152192
- GROUP: 5
- Paint: GRAY - LINCOLN
- Eff 100%: 91 / 90.2
