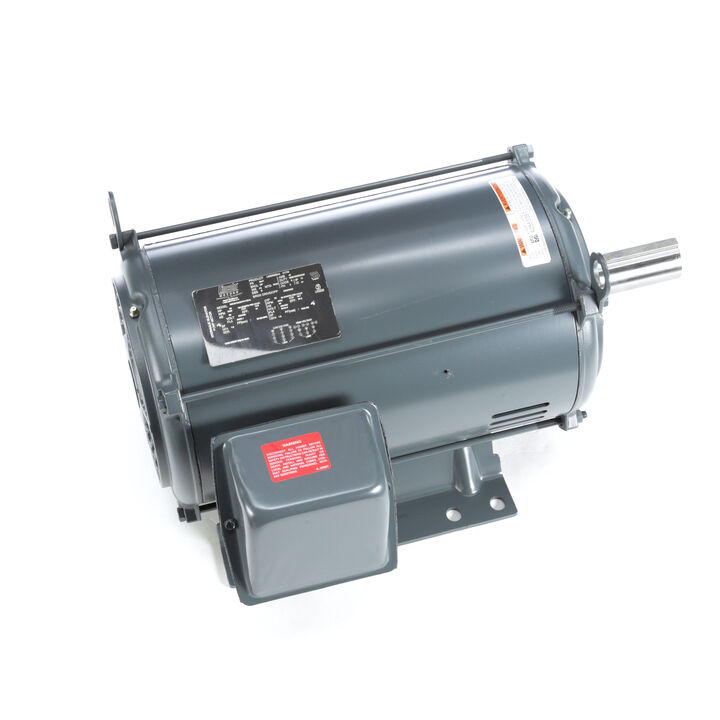

MARATHON MOTORS LM30096 SSD2P20/25T61YEH2 Elevator Duty Motor, 20/25 HP, 3 Ph, 60 Hz, 230/460 and 230/460V, 3600 and 3600 RPM
Get it by Friday, Aug 14
€2,377.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 23.1/46A , 46/23.1/59/29.5A |
| Application Type | Elevator Motors, Hydraulic Pump Motors |
| Assembly/box Mounting | F1, F2 Capable |
| Code | E |
| Design Code | B |
| Drive End Bearing Size | 6309 |
| Drive End Bearing Type | Ball |
| Efficiency | 91% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 254T |
| Frame Length | 13.7" |
| Frame Material | Rolled Steel |
| Frame Size | 254T |
| Frequency | 60 Hz |
| Full Load Amps | 46/23.1A |
| Height | 12" |
| Hp | 20 hp |
| Insulation Class | Class F |
| Ip Code | IP12 |
| Kva Code | E |
| Kw | 14.9 kW |
| Length | 20.57" |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3600 RPM |
| Nema Design | B, E |
| No. Of Phase | 3 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6208 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 14.9/18.7 kW |
| Packaging | B |
| Power | 14.9 kW |
| Power Factor | 88.6 |
| Resistance Main | 0.485 ohms |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Shaft Type | T |
| Speed | 3400-3600 RPM |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Torque | 30 lbs.-ft. |
| Type | TDR |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Width | 13.77" |
Shipping Info:
| Ship weight (kg) | 71.1 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| Country of Origin | MX |
Product Details:
- Eff 75%: 91.7
- Bearing OPE: 6208
- CC Number: EXEMPT
- Bearing PE: 6309
- Nameplate: 92117
- Winding: K2152191
- GROUP: 1
- Paint: GRAY - GE
- Eff 100%: 91 / 90.2
