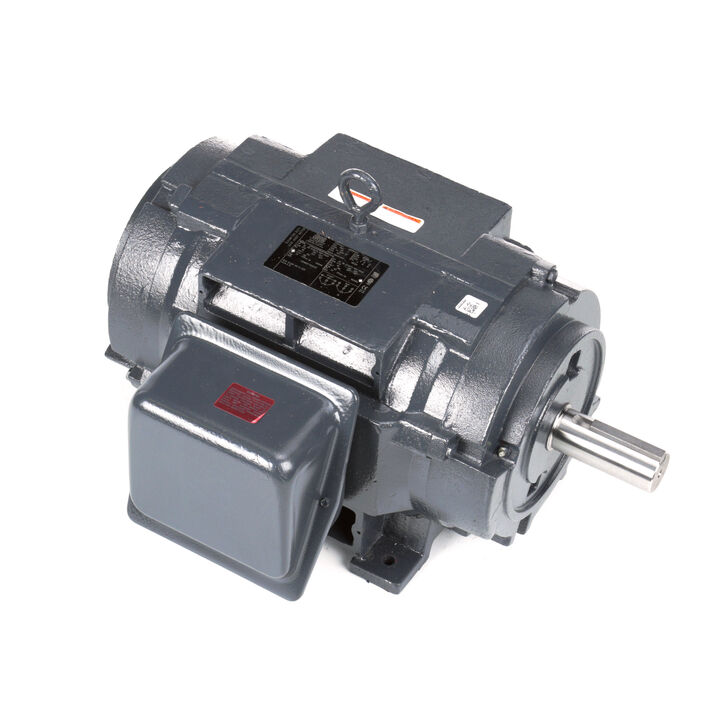

MARATHON MOTORS LM29852 CCD4P30/40T6006YEH2 Elevator Duty Motor, 30 and 40 HP, 3 Ph, 60 Hz, 200 and 200V, 1800 and 1800 RPM
Get it by Wednesday, Feb 25
€3,481.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 83/112A |
| Amps Rating | 83A |
| Application Type | Elevator Motors, Hydraulic Pump Motors |
| Assembly/box Mounting | F1, F2 Capable |
| Code | D |
| Design Code | Inv |
| Drive End Bearing Size | 311 |
| Drive End Bearing Type | Ball |
| Efficiency | 92.4%, 91.7% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 286T |
| Frame Length | 14 1/4" |
| Frame Material | Cast Iron |
| Frame Size | 286T |
| Frequency | 60 Hz |
| Full Load Amps | 83/112A |
| Height | 16.31" |
| Hp | 30 hp |
| Insulation Class | Class F |
| Ip Code | IP12 |
| Kva Code | D |
| Length | 24.99" |
| Material | Cast Iron |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | D |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 210 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 22.4/30 kW |
| Packaging | B |
| Phase | 3 |
| Power | 22.4 kW |
| Power Factor | 84 |
| Resistance Main | 0.295 ohms |
| Rotation Type | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4.63" |
| Shaft Type | T |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Torque Rating | 89 lbs.-ft. |
| Type | TDS |
| Variable Torque Speed Range | 10 |
| Voltage | 200V AC |
| Voltage Rating | 200V AC |
| Width | 18.15" |
Shipping Info:
| Ship weight (kg) | 202.5 |
| Ship height (cm) | 50.62 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 55.88 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 210
- CC Number: EXEMPT
- Bearing PE: 311
- Winding: K2564229
- GROUP: 3
- Paint: GRAY - LINCOLN
- Eff 100%: 92.4 / 91.7
