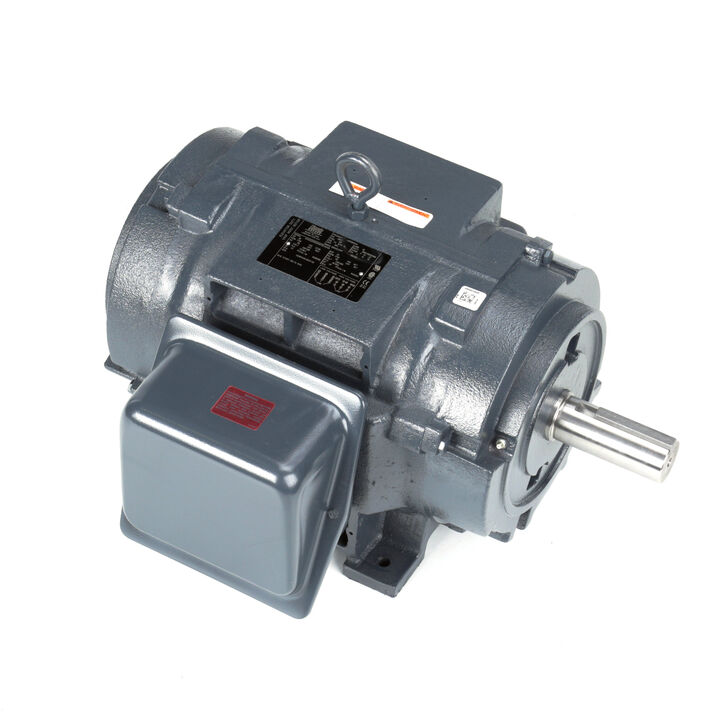

MARATHON MOTORS LM29851 CCD4S25/30T61YEH2 Elevator Duty Motor, 3 Phase, 1800 RPM, 230/460V, 284T Frame
Get it by Tuesday, Aug 25
€3,002.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Elevator Duty Motor |
| Amps Rating | 73/36.5A |
| Dimension S | 23.49" x 18.15" x 16.31" |
| Drive End Bearing Size | 311 |
| Efficiency | 91.7% |
| Electrical Phase | 3 |
| Enclosure | Open Dripproof |
| Enclosure Type | Drip Proof |
| Family Series | Leeson Motors |
| Full Load Amps | 30.5/36.5/61/73A |
| Hp | 25 hp |
| Insulation Class | Class F |
| Kw | 18.7 kW |
| Mounting Type | Rigid Base |
| No. Of Poles | 4 |
| Nominal Voltage | 240/480V AC |
| Opp Drive End Bearing Size | 210 |
| Phase | 3 |
| Power | 25 |
| Product Datasheet | leeson-lm29851.pdf |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1.875 |
| Shaft Length | 4.63 |
| Shaft Size | 1.88" x 4.63" |
| Speed | 1700-1800 RPM |
| Temp. Rating | 40°C |
| Torque Rating | 74.5 lbs.-ft. |
| Type | General Purpose |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 142.2 |
| Ship height (cm) | 50.62 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 55.88 |
| Country of Origin | US |
Documentation:
