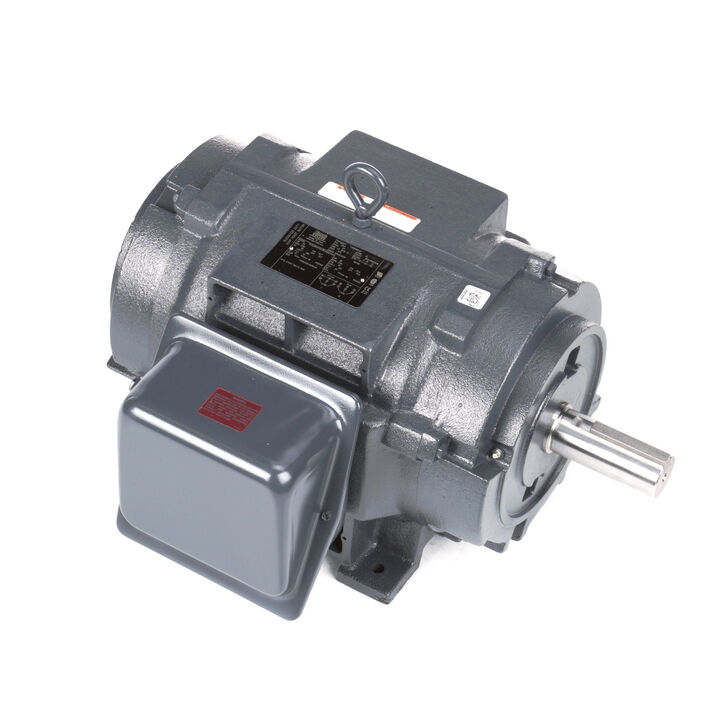

MARATHON MOTORS LM29850 CCD4P25/30T6006YEH2 Elevator Duty Motor, 25 and 30 HP, 3 Ph, 60 Hz, 200 and 200V, 1800 and 1800 RPM
Get it by Friday, Feb 27
€3,002.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps Rating | 70A |
| Application Type | Elevator Motors, Hydraulic Pump Motors |
| Code | F |
| Drive End Bearing Size | 311 |
| Drive End Bearing Type | Ball |
| Efficiency | 91.7% |
| Enclosure Type | ODP |
| Frame | 284T |
| Frame Material | Cast Iron |
| Frame Size | 284T |
| Frequency | 60 Hz |
| Full Load Amps | 70/84A |
| Grease Type | Polyrex EM |
| Height | 16.31" |
| Hp | 25 hp |
| Insulation Class | Class F |
| Kw | 18.7 kW |
| Length | 23.49" |
| Lubrication | Polyrex EM |
| Material | Cast Iron |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B, F |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 210 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 18.7 kW |
| Power Factor | 84 |
| Rotation Type | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4.62" |
| Temp. Rating | 40°C |
| Torque Rating | 74.5 lbs.-ft. |
| Type | TDS |
| Variable Torque Speed Range | 10 |
| Voltage | 200V AC |
| Voltage Rating | 200V AC |
| Width | 18.15" |
Shipping Info:
| Ship weight (kg) | 135 |
| Ship height (cm) | 50.62 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 55.88 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 210
- CC Number: EXEMPT
- Bearing PE: 311
- Winding: K2564256
- GROUP: 2
- Paint: GRAY - LINCOLN
- Eff 100%: 91.7 / 90.2
