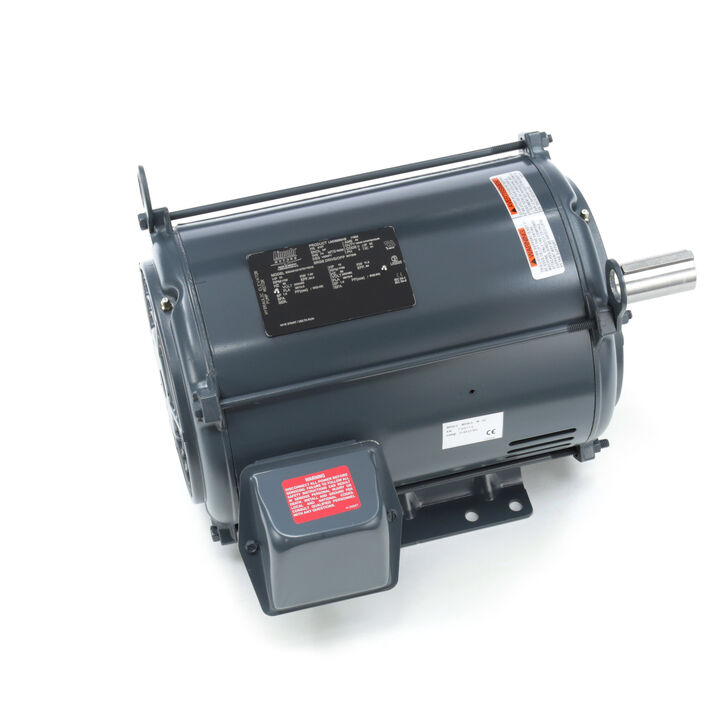

MARATHON MOTORS LM28868 SSD4S10/15T61YEH2 Elevator Duty Motor, 10/15 HP, 3 Ph, 60 Hz, 230/460 and 230/460V, 1800 and 1800 RPM
Get it by Tuesday, Sep 1
€1,319.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 12.5/25A , 25/12.5/39/19.6A |
| Application Type | Elevator Motors, Hydraulic Pump Motors |
| Assembly/box Mounting | F1, F2 Capable |
| Code | C |
| Design Code | Inv |
| Drive End Bearing Size | 307 |
| Drive End Bearing Type | Ball |
| Efficiency | 89.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 215T |
| Frame Length | 11.15" |
| Frame Material | Rolled Steel |
| Frame Size | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 25/12.5A |
| Height | 11" |
| Hp | 10 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | C |
| Kw | 7.5 kW |
| Length | 17.29" |
| Material | Rolled Steel |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| Nema Design | B, C |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 7.5/11.2 kW |
| Packaging | B |
| Phase | 3 |
| Power | 7.5 kW |
| Power Factor | 85 |
| Resistance Main | 1.31 ohms |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Torque | 30 lbs.-ft. |
| Type | TDR |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Width | 12.45" |
Shipping Info:
| Ship weight (kg) | 55.8 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 206
- CC Number: EXEMPT
- Bearing PE: 307
- Nameplate: 92117
- Winding: K2154336
- GROUP: 8
- Paint: GRAY - LINCOLN
- Eff 100%: 89.5 / 84
