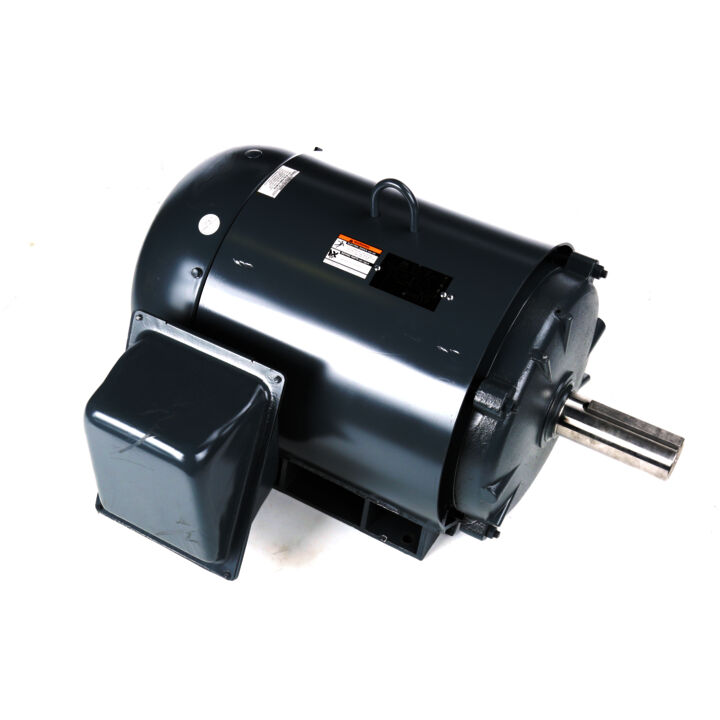

MARATHON MOTORS LM17079 AAF4B20T65 Voltage Motor, 20 HP, 3 Phase, 60 Hz, 575V, 1800 RPM, 256T Frame, Tefc
Get it by Tuesday, Aug 25
€2,586.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Voltage Motor |
| Amps | 19.3A |
| Dimension S | 25.15" x 16.98" x 14.39" |
| Drive End Bearing Size | 6309 |
| Efficiency | 93% |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled (Tefc) |
| Family Series | Leeson Miscellaneous |
| Frame | 256T |
| Hp | 20 hp |
| Insulation Class | Class F |
| Kw | 14.9 kW |
| Mounting Type | Rigid Base |
| Opp Drive End Bearing Size | 6208 |
| Phase | 3 |
| Product Datasheet | marathon-motors-lm17079.pdf |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 1.625 |
| Shaft Size | 1.63" x 4" |
| Speed | 1700-1800 RPM , 1775 RPM |
| Temp. Rating | 40°C |
| Torque Rating | 59.2 lbs.-ft. |
| Type | Continuous Duty |
| Variable Torque Speed Range | 10 |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 123.75 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 78.11 |
| Ship width (cm) | 55.25 |
| Country of Origin | US |
