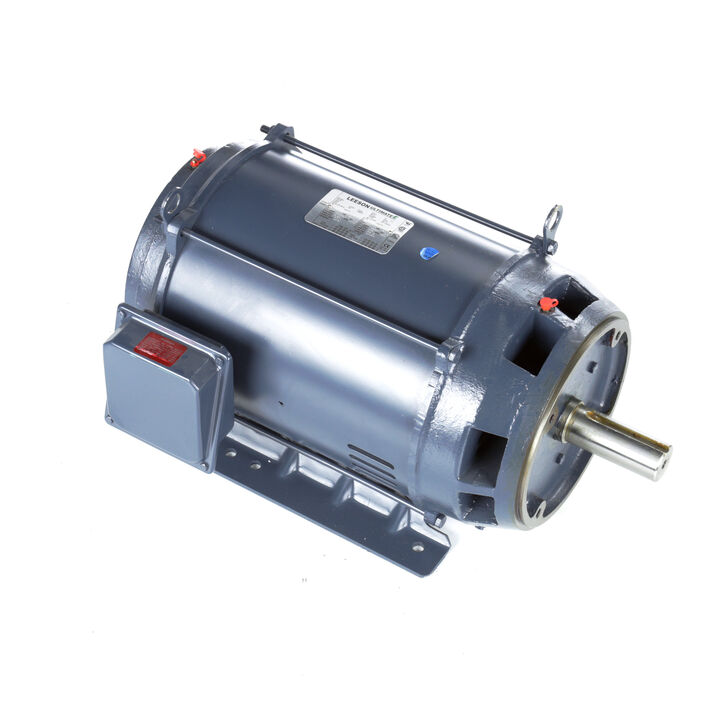

MARATHON MOTORS B199748.00 C284T34DK6A General Purpose Motor, Drip Proof, 30 HP, 3 Phase, 60 Hz, 230/460V, 3562 RPM
Get it by Tuesday, Aug 25
€2,776.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 71.5/35.5/71.5/36A |
| Amps Rating | 71.5/35.5A |
| Composition | Steel |
| Design Code | B |
| Dimension S | 24.34" x 16.92" x 15" |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure | Open Dripproof |
| Family Series | Leeson Motors |
| Frame Length | 12.59" |
| Full Load Amps | 71.5A |
| Height | 28.14" |
| Hp | 30 hp |
| Insulation Class | Class F7 |
| Kva Code | F |
| Kw | 22.4 kW |
| Length | 31.77" |
| Motor Orientation | Horizontal |
| Mounting | Rigid Base |
| Mounting Type | Rigid |
| No. Of Speeds | 1 |
| Nominal Voltage | 240/480V AC |
| Overall Length | 24.34" |
| Phase | 3 |
| Power Factor | 87 |
| Product Datasheet | leeson-b199748-00.pdf |
| Resistance Main | 0.358 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1.625 |
| Shaft Extension | 3 1/4" |
| Shaft Length | 3.25 |
| Shaft Size | 1 5/8" x 3 1/4" |
| Shaft Type | Ts |
| Speed | 2960 RPM , 3400-3600 RPM |
| Thermal Protection | NO Protection |
| Type | 2 Pole Squirrel Cage Inverter Rated |
| Voltage | 230/460V |
| Voltage Ac | 230/460V AC |
| Width | 28.03" |
Shipping Info:
| Ship weight (kg) | 159.72 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| Country of Origin | CN |
Documentation:
