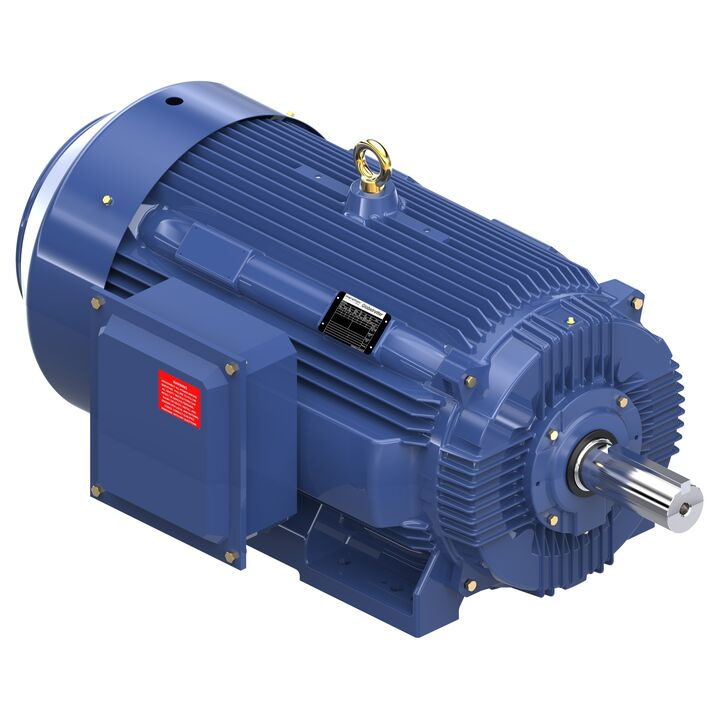

MARATHON MOTORS 447TTFCD6038 GT1055A / 447TTFCD6038CB General Purpose Motor, 200/150 HP, 3 Phase, 60/50 Hz, 460 and 380V, 1800 and 1500 RPM
Item: CH6JWVModel: 447TTFCD6038Cross Ref: 44Z405 / GT1055A / 447TTFCD6038CB
In Stock
Get it by Thursday, Dec 25
€25,672.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 96.5% |
| Efficiency Group | Premium |
| Frame | 447T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 219A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 200 hp |
| Includes | Conduit Box |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 46 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1790 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 96.5% |
| Overall Length | 55 3/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 3 3/8" |
| Shaft Length | 8 1/2" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 2300 lbs. |
Shipping Info:
| Ship weight (kg) | 1034.91 |
| Ship height (cm) | 79.35 |
| Ship length (cm) | 147.85 |
| Ship width (cm) | 88.72 |
| HS code | 8501538040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Frame | Shaft Dia. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTFCD6001 | 230/460V AC | 3530 RPM | 3 hp | 60 Hz | 8.2/4.1A | 182T | 1 1/8" | 86.5% | €1,072.32 | |
 |
256TTFCD6001 | 230/460V AC | 3540 RPM | 20 hp | 60 Hz | 47.5/23.7A | 256T | 1 5/8" | 91% | €3,049.18 | |
 |
326TTFCD6030 | 575V AC | 1782 RPM | 50 hp | 60 Hz | 47A | 326T | 2 1/8" | 94.5% | €4,974.96 | |
 |
145TTFC6027 | 230/460V AC | 1730 RPM | 2 hp | 50/60 Hz | 5/2.5A | 145T | 7/8" | 86.5% | €838.25 | |
 |
184TTFCD6005 | 575V AC | 3525 RPM | 5 hp | 60 Hz | 5A | 184T | 1 1/8" | 89.5% | €1,498.53 | |
 |
326TSTFCD6001 | 230/460V AC | 3568 RPM | 50 hp | 60 Hz | 113/56.5A | 326TS | 1 7/8" | 95.8% | €5,978.91 | |
 |
364TTFCD6036 | 230/460V AC | 1782 RPM | 60 hp | 60 Hz | 138/69A | 364T | 2 3/8" | 95% | €7,217.91 |
