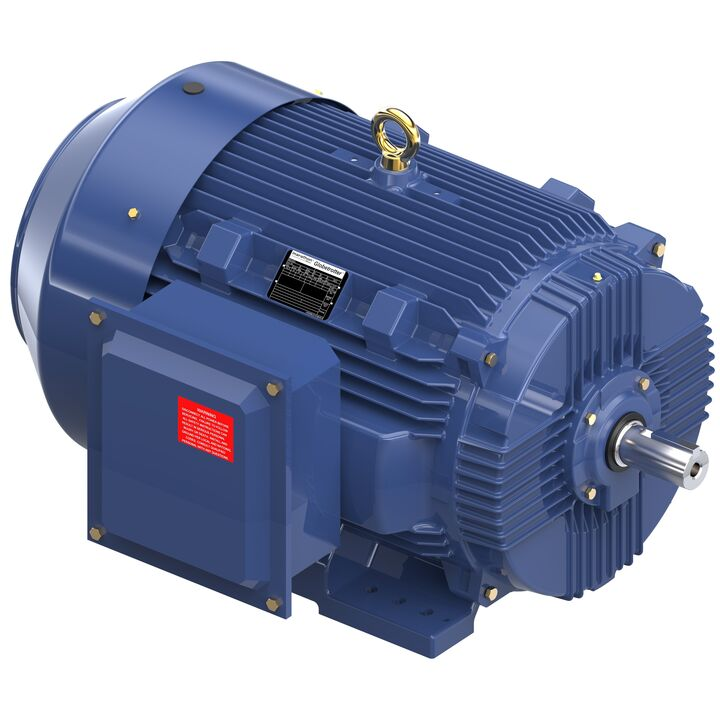

MARATHON MOTORS 445TSTFCD6001 GT1051A / 445TSTFCD6001CB General Purpose Motor, 150/125 HP, 3 Phase, 60/50 Hz, 460 and 380V, 3600 and 3000 RPM
Item: CH6JWPModel: 445TSTFCD6001Cross Ref: 44Z396 / GT1051A / 445TSTFCD6001CB
In Stock
Get it by Monday, Aug 31
€20,503.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 95% |
| Efficiency Group | Premium |
| Frame | 445TS |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 164A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 150 hp |
| Included | Conduit Box |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 43 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3580 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 95% |
| Overall Length | 47 15/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 2 3/8" |
| Shaft Length | 4 3/4" |
| Speed | 3001-3600 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 803.72 |
| Ship height (cm) | 75.57 |
| Ship length (cm) | 116.74 |
| Ship width (cm) | 88.72 |
| HS code | 8501534080 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Frame | Shaft Dia. | Efficiency | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTFCD6001 | 230/460V AC | 3 hp | 60 Hz | 8.2/4.1A | 182T | 1 1/8" | 86.5% | 2 3/4" | €969.26 | |
 |
256TTFCD6001 | 230/460V AC | 20 hp | 60 Hz | 47.5/23.7A | 256T | 1 5/8" | 91% | 4" | €2,352.09 | |
 |
326TTFCD6030 | 575V AC | 50 hp | 60 Hz | 47A | 326T | 2 1/8" | 94.5% | 5 1/4" | €4,556.56 | |
 |
145TTFC6027 | 230/460V AC | 2 hp | 50/60 Hz | 5/2.5A | 145T | 7/8" | 86.5% | 2 1/4" | €838.25 | |
 |
184TTFCD6005 | 575V AC | 5 hp | 60 Hz | 5A | 184T | 1 1/8" | 89.5% | 2 3/4" | €1,498.53 | |
 |
326TSTFCD6001 | 230/460V AC | 50 hp | 60 Hz | 113/56.5A | 326TS | 1 7/8" | 95.8% | 3 3/4" | €4,890.03 | |
 |
364TTFCD6036 | 230/460V AC | 60 hp | 60 Hz | 138/69A | 364T | 2 3/8" | 95% | 5 7/8" | €7,163.46 |
