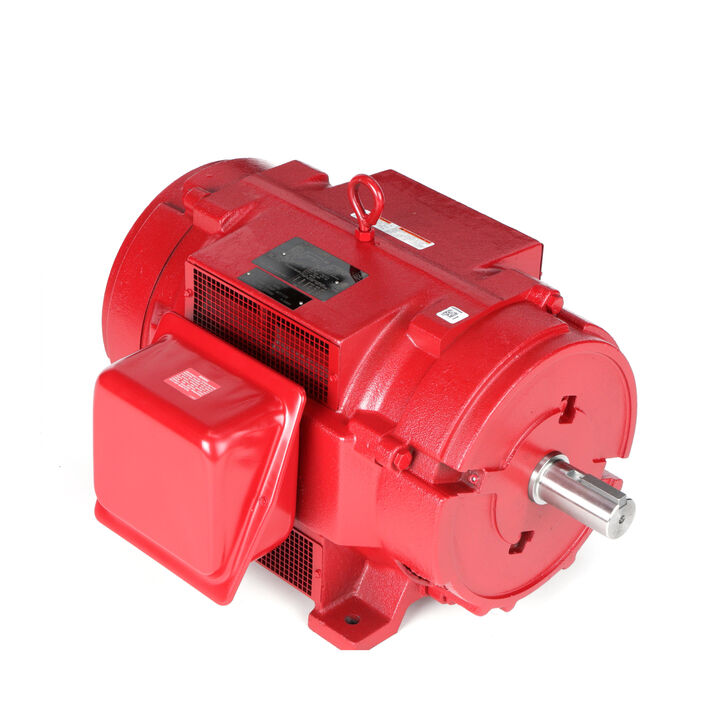

MARATHON MOTORS 326TSTDCD4022 326TSTDCD4022AA / U517A Fire Pump Motor, 60 HP, 3 Phase, 60 Hz, 190/380-400V, 3600 RPM
Item: CT2FPZModel: 326TSTDCD4022Cross Ref: 482R31 / 326TSTDCD4022AA / U517A
In Stock
Get it by Monday, Dec 22
€6,698.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fire Pump Motor |
| Ambient Temp. | 50°C |
| Bearing Type | Ball |
| Body Dia. | 17.3" |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 93% |
| Frame | 326TS |
| Frame Material | Cast Iron |
| Full Load Amps | 165/77.5-82.5A |
| Height | 16 11/16" |
| Hp | 60 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Length Less Shaft | 24 1/2" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Sub Application | Fire Pump |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3565 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93% |
| Number Of Speeds | 1 |
| Overall Height | 16 11/16" |
| Overall Length | 28 1/4" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 3 3/4" |
| Shaft Material | Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 190/380-400V AC |
Shipping Info:
| Ship weight (kg) | 312.3 |
| Ship height (cm) | 68.99 |
| Ship length (cm) | 84 |
| Ship width (cm) | 68.99 |
| Country of Origin | CN |
