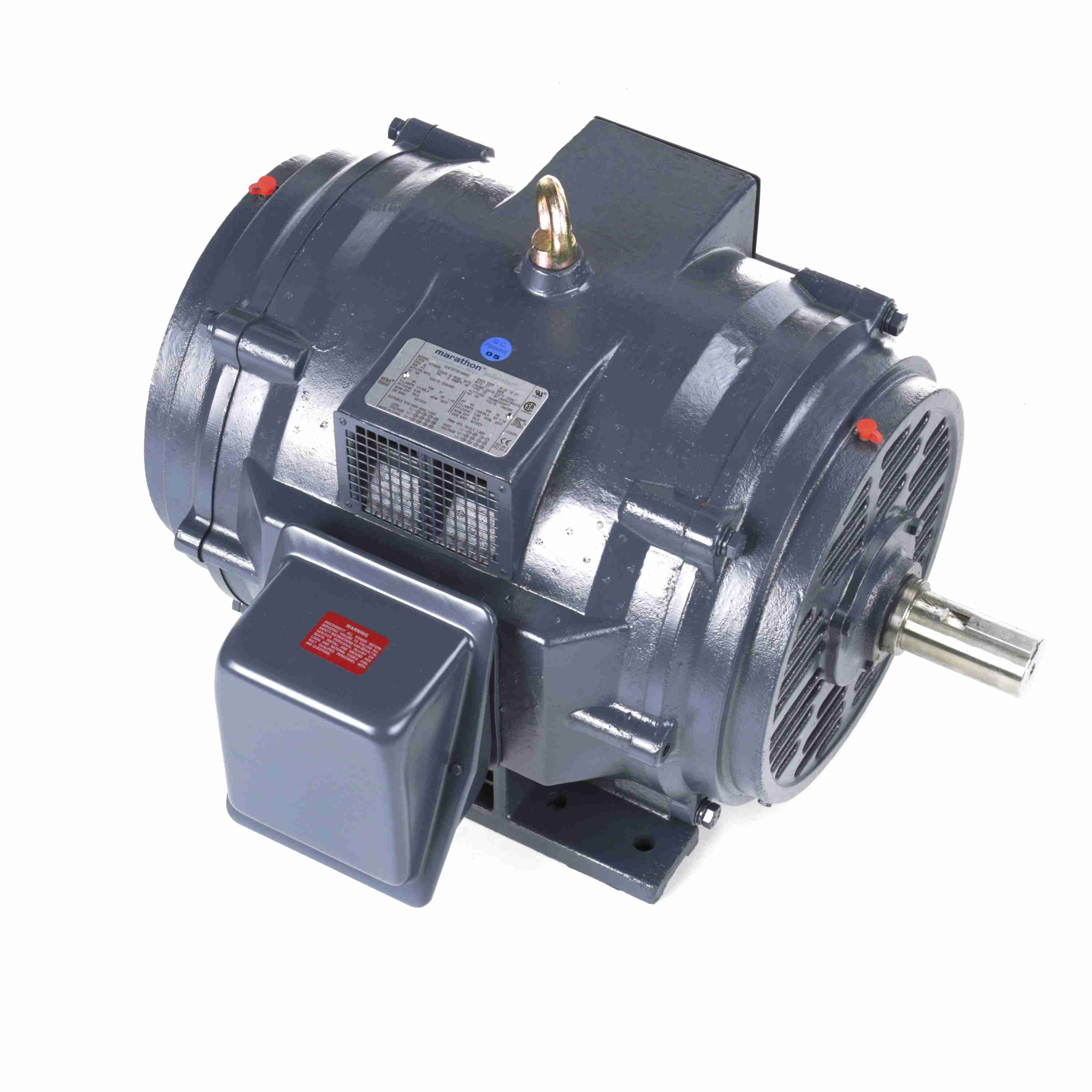

MARATHON MOTORS 324TSTDBD6026 GT0074 / 324TSTDBD6026CB General Purpose Motor, Open Drip Proof, Rigid Base Mount, 40 HP, 230/460V AC
Item: EA6DNXModel: 324TSTDBD6026Cross Ref: 44Z213 / GT0074 / 324TSTDBD6026CB
In Stock
Get it by Tuesday, Aug 25
€3,173.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Cc No. | CC003A |
| Frame | 324ts |
| Frame Material | Cast Iron |
| Full Load Amps | 95.5/47.5A |
| Hp | 40 hp |
| Ins. Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 24 7/16" |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Three-Phase |
| Motor Efficiency Group | NEMA Premium Efficient , Premium Efficient, Premium Efficiency (IE3) |
| Motor Enclosure Design | Open Drip Proof , Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Motor Thermal Protection | None |
| Nameplate Speed | 1780 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 95.8% |
| Overall Length | 27 1/16" |
| Phase | 3 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 3 3/4" |
| Speed | 1701-1800/1701-1800 RPM |
| Voltage | 230/460V AC |
| Voltage Compatibility | 230/460/208-230/460/208-220/440/200-230/460/200-230/440V AC |
Shipping Info:
| Ship weight (kg) | 203.41 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| Country of Origin | MX |
