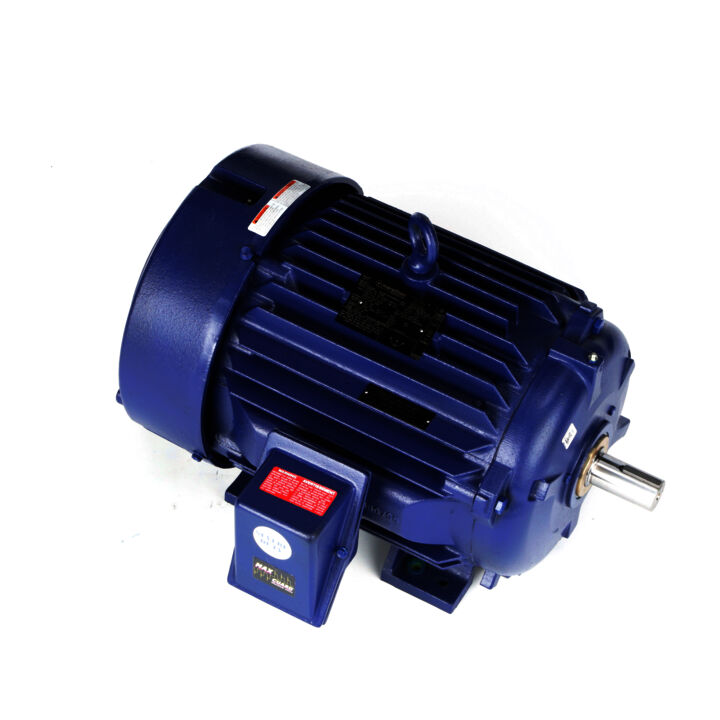

MARATHON MOTORS 286TSHFNA9001 W565 / 286TSHFNA9001AC Severe Duty Motor, 30 HP, 3600 RPM, 460 V, 60 Hz
Get it by Tuesday, Aug 25
€6,545.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 40°C |
| Ce Approved | Yes |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed |
| Frame | 286TS |
| Full Load Amps | 34A |
| Full Load Efficiency | 93.6 |
| Hp | 30 hp |
| Insulation Class | Class F |
| Kva Code | G |
| Mounting Location | Rigid |
| Nema Design | B |
| Opposite End Bearing Size | 6210 |
| Orientation | Horizontal |
| Phase | 3 |
| Service Factor | 1.15 |
| Speed | 3001-3600 RPM |
| Starting Type | Line Or Inverter |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 189 |
| Ship height (cm) | 61.82 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| Country of Origin | US |
