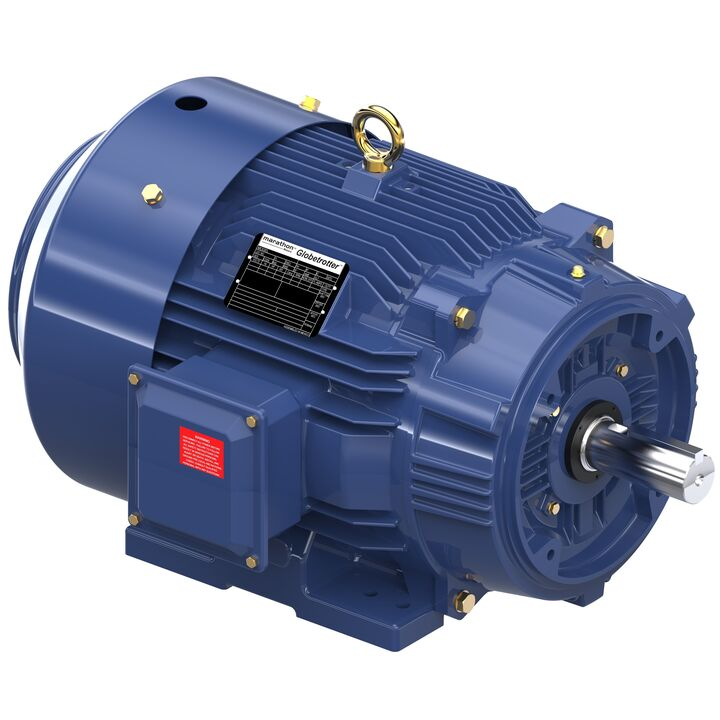

MARATHON MOTORS 284TTFCD6028 GT1228A / 284TTFCD6028CB General Purpose Motor, 25/20 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: AD4WKJModel: 284TTFCD6028Cross Ref: 44P080 / GT1228A / 284TTFCD6028CB
In Stock
Get it by Wednesday, Dec 24
10.00% off
€3,883.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 94.1% |
| Efficiency | 93.6% |
| Efficiency Group | Premium |
| Frame | 284TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 60/30A |
| Hp | 25 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 22" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1772 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Overall Length | 26 5/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4 5/8" |
| Standards | Ce, Csa, Ul Listed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 470 lbs. |
Shipping Info:
| Ship weight (kg) | 181.58 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| HS code | 8501528040 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - U725 / 284TTFPA4027
Product Variants
| Product | Model | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Frame | Frame Material | Shaft Dia. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

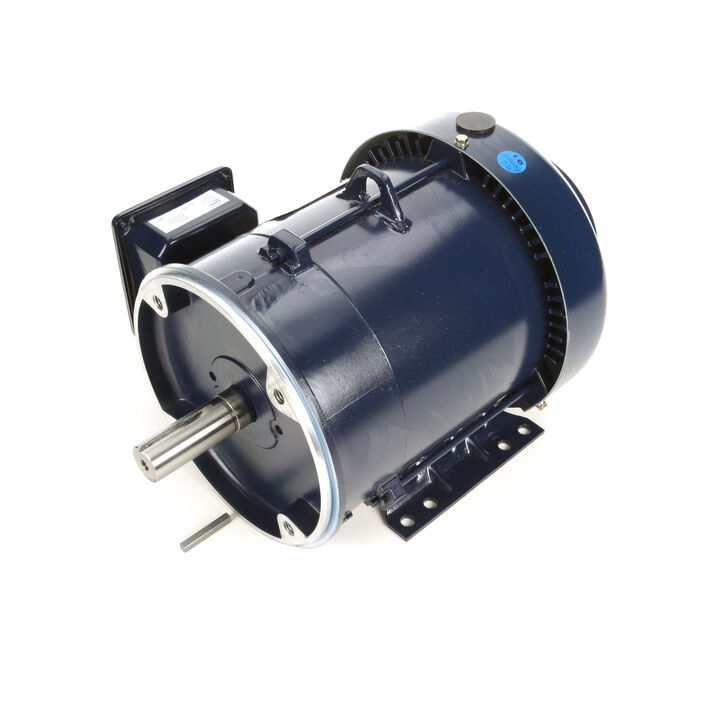

182TTFBD6003 | 3530 RPM | 3 hp | 8.2/4.1A | Rigid Base | 182TC | Steel | 1 1/8" | 86.5% | €1,090.30 | |
 |

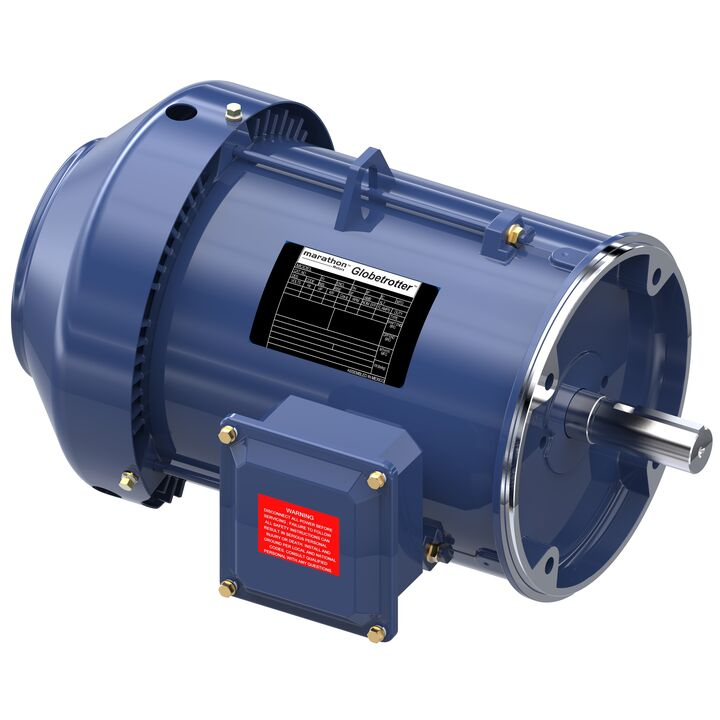

184TTFBD6004 | 3525 RPM | 5 hp | 12.4/6.2A | Face | 184TC | Steel | 1 1/8" | 91% | €1,129.04 | |
 |

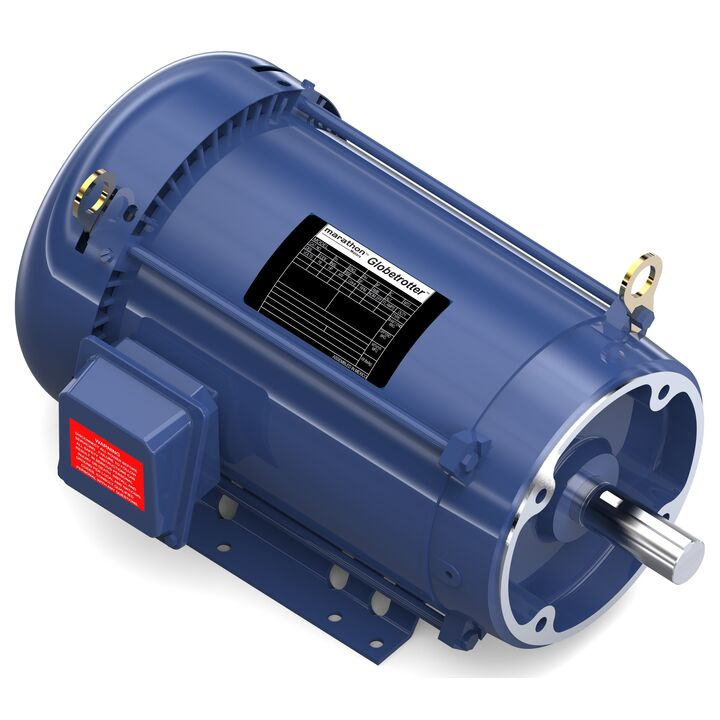

215TTFBD6003 | 3518 RPM | 10 hp | 23.6/11.8A | Rigid Base | 215TC | Steel | 1 3/8" | 90.2% | €1,949.35 | |
|
286TTFCD6028 | 1770 RPM | 30 hp | 71/35.5A | - | 286TC | Cast Iron | 1 7/8" | 94.1% | €4,704.44 | |
 |

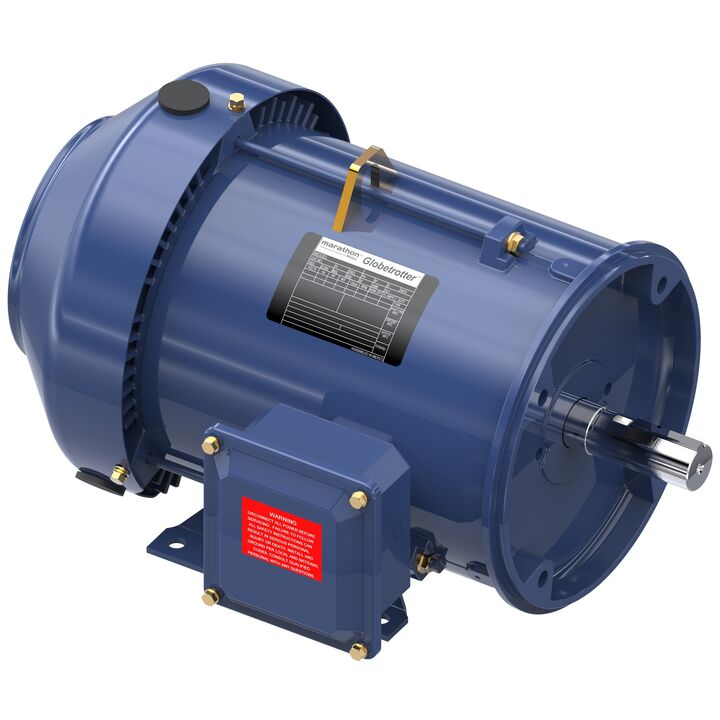

184TTFBD6003 | 3525 RPM | 5 hp | 12.4/6.2A | - | 184TC | Steel | 1 1/8" | 87.5% | €1,184.80 |
