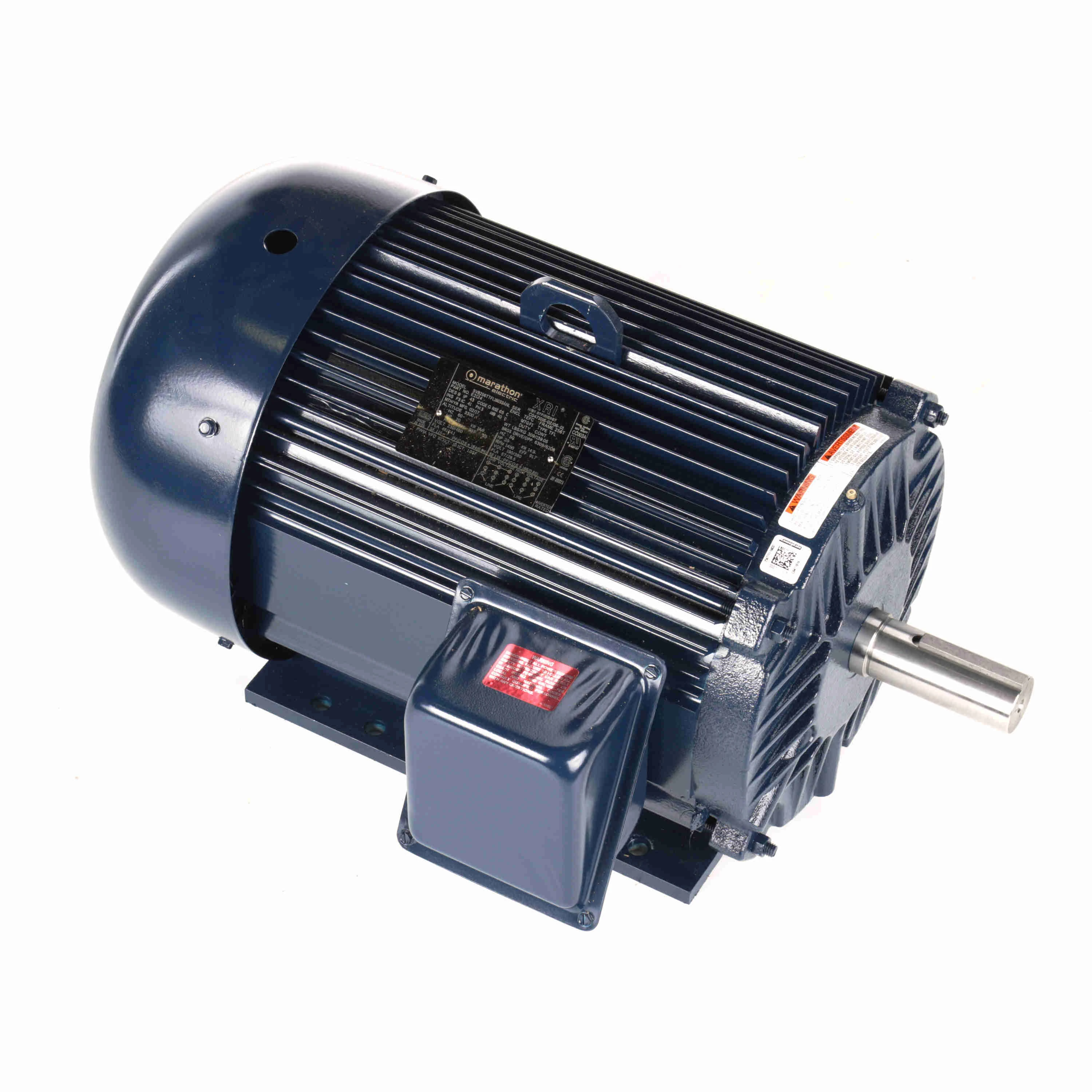

MARATHON MOTORS 256TTFL16033 E2124 / 256TTFL16033AN General Purpose Motor, 20 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, Dec 24
10.00% off
€3,571.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Protection | Shaft Slinger |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 93% |
| Efficiency | 94.1% |
| Efficiency Group | Premium |
| Frame | 256T |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 48/24.1A |
| Full Load Amps @ 50hz | 48/24.1A |
| Hp | 20 hp |
| Hp @ 50hz | 20 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 20 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1775 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Overall Length | 25 1/4" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 3/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 309 lbs. |
Shipping Info:
| Ship weight (kg) | 139.05 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 79.38 |
| Ship width (cm) | 56.52 |
| HS code | 8501528040 |
| Country of Origin | US |
Product Details:
- Supersedes Marathon - U652B / 256TTFC6027
Product Variants
| Product | Model | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Ambient Temp. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

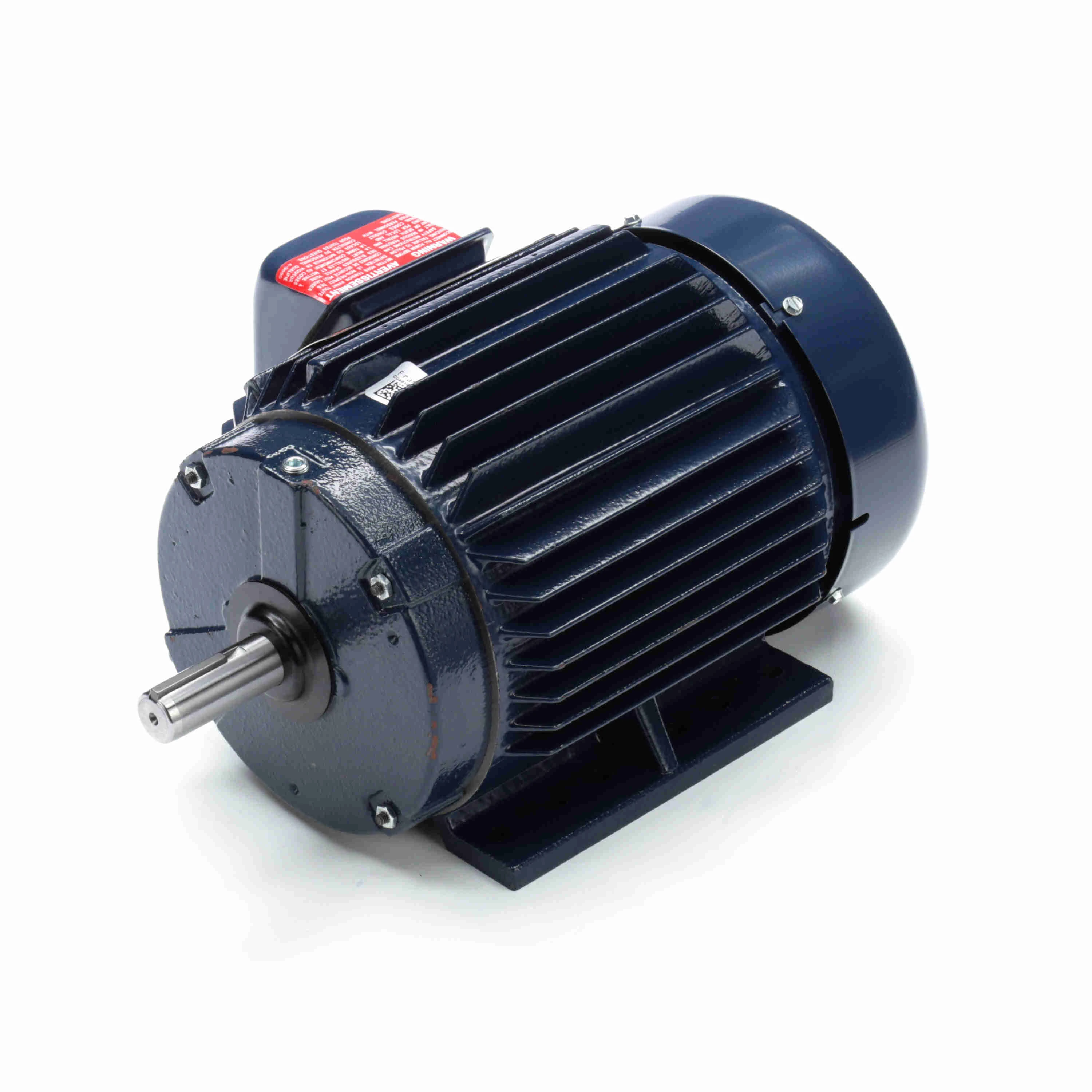

143TTFN16040 | 1735 RPM | 1 hp | 50/60 Hz | 3/1.5A | Three Phase | 143T | 40°C | 85.5% | €1,192.91 | |
 |

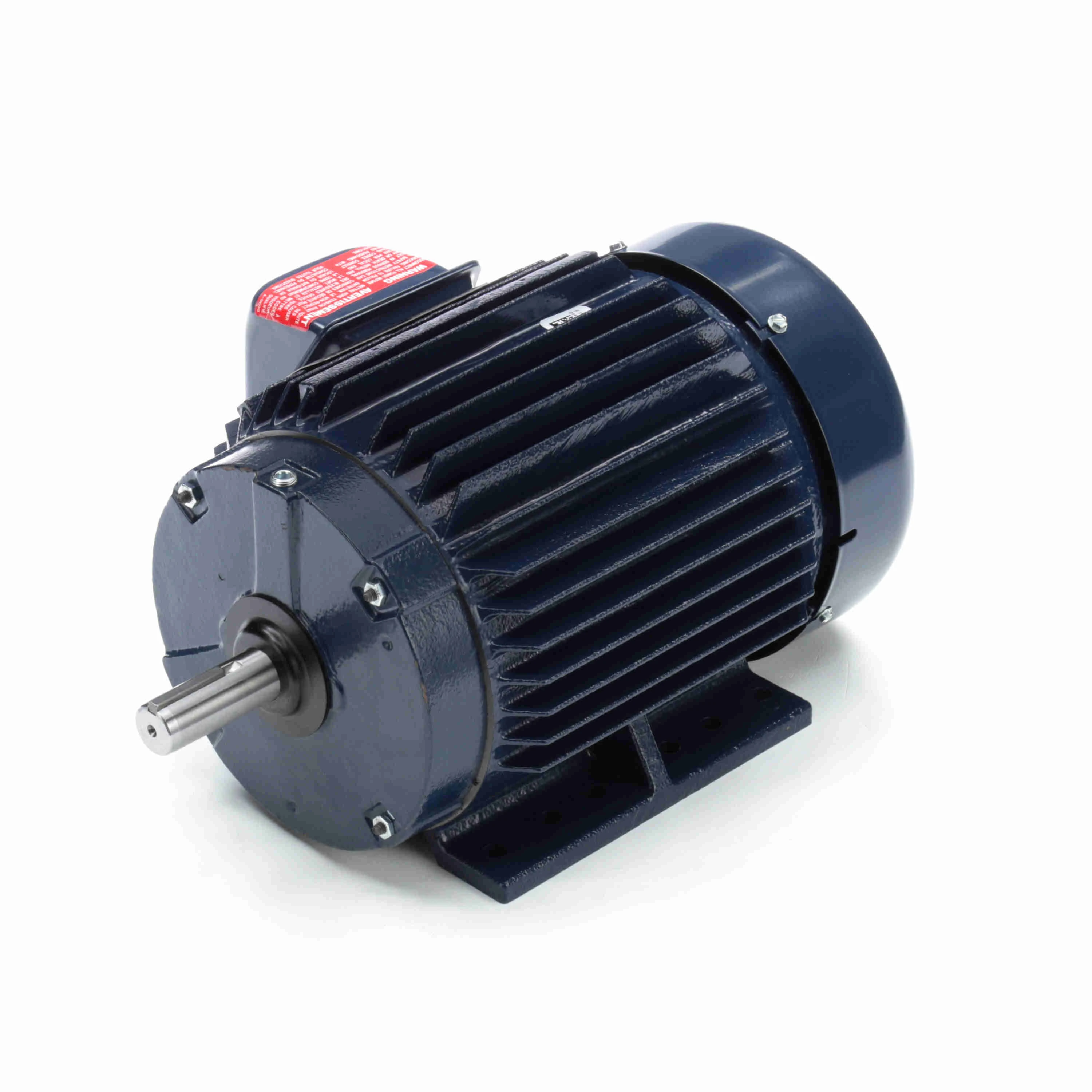

145TTFN16045 | 1755 RPM | 2 hp | 50/60 Hz | 6/3A | Three Phase | 145T | 40°C | 86.5% | €1,025.41 | |
 |

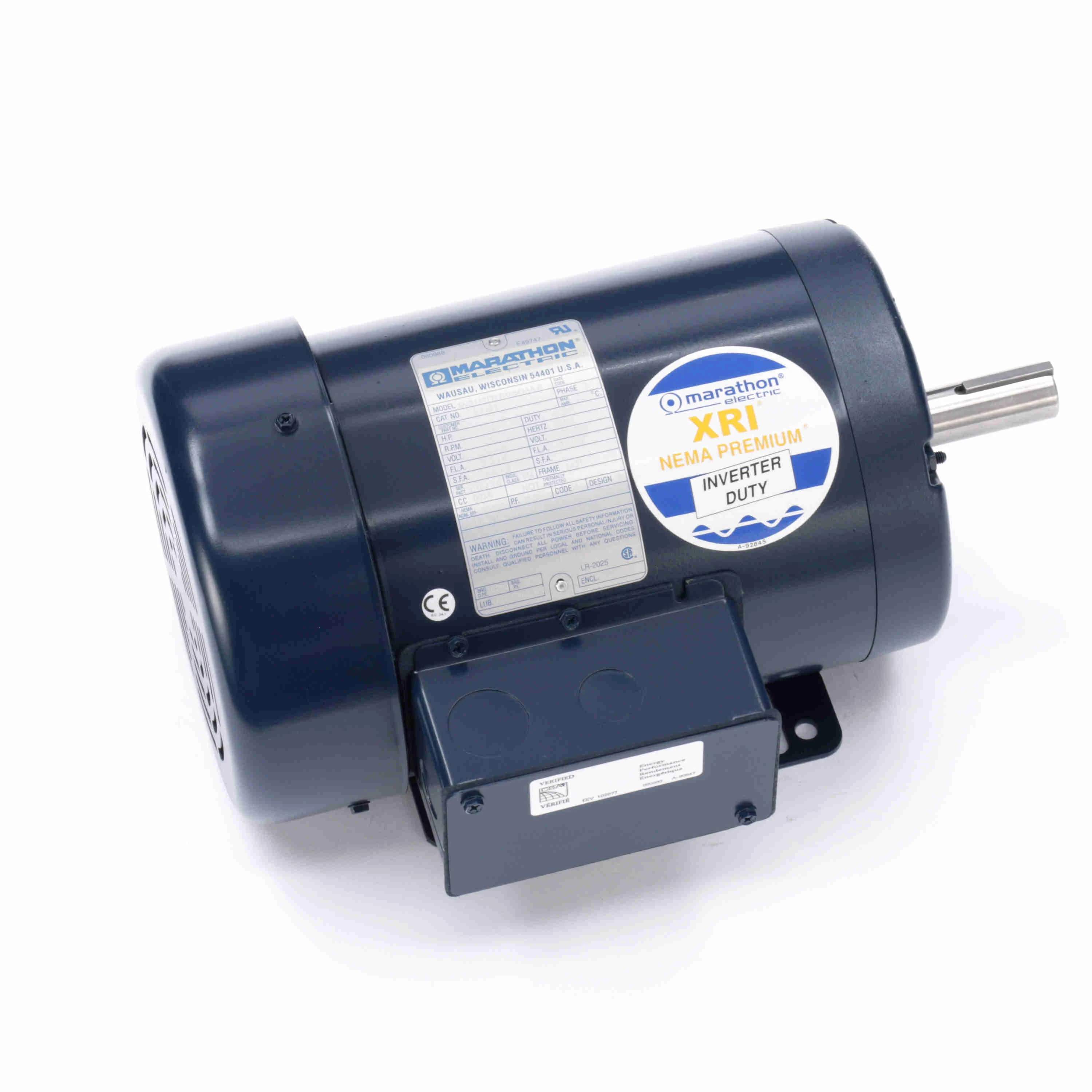

143TTFR15642 | 1760 RPM | 1 hp | 50/60 Hz | 1.6/3.2A | Three Phase | 143T | 40°C | 85.5% | €905.25 | |
 |

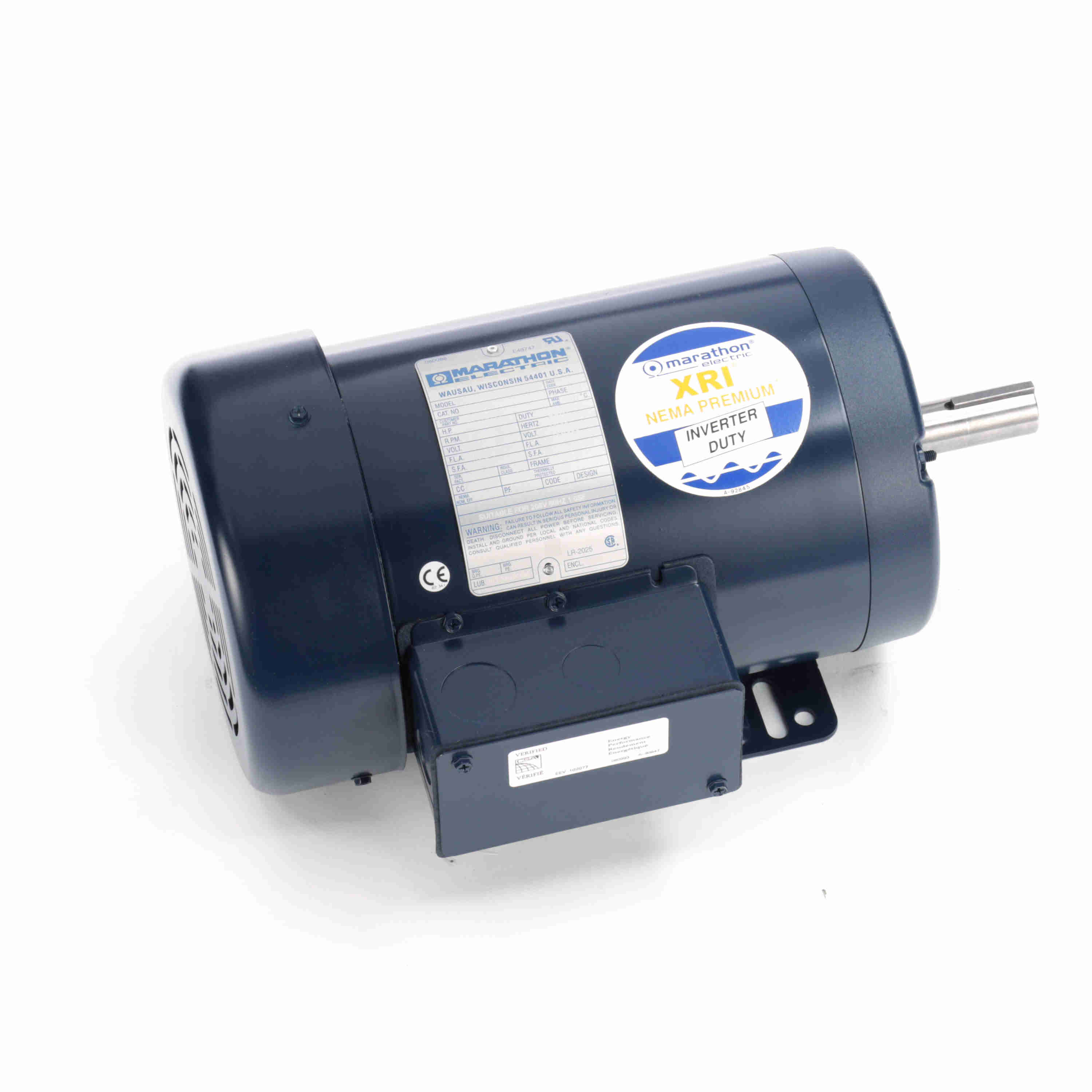

145TTFR16033 | 1750 RPM | 1 1/2 hp | 50/60 Hz | 4.8/2.4A | Three Phase | 145T | 40°C | 86.5% | €774.15 | |
 |

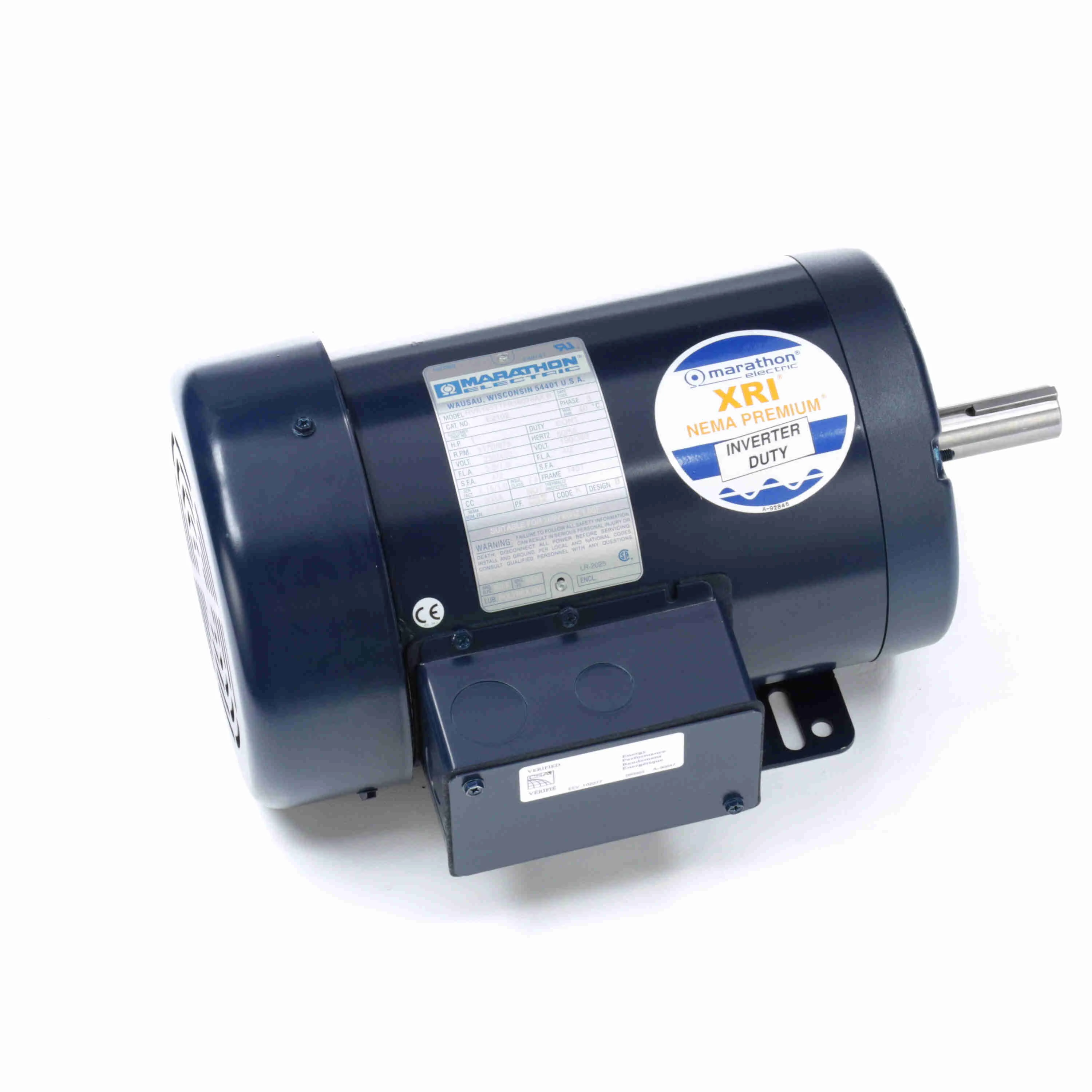

145TTFR16078 | 1170 RPM | 1 hp | 50/60 Hz | 3.8/1.9A | Three Phase | 145T | 40°C | 82.5% | €1,154.54 | |
 |

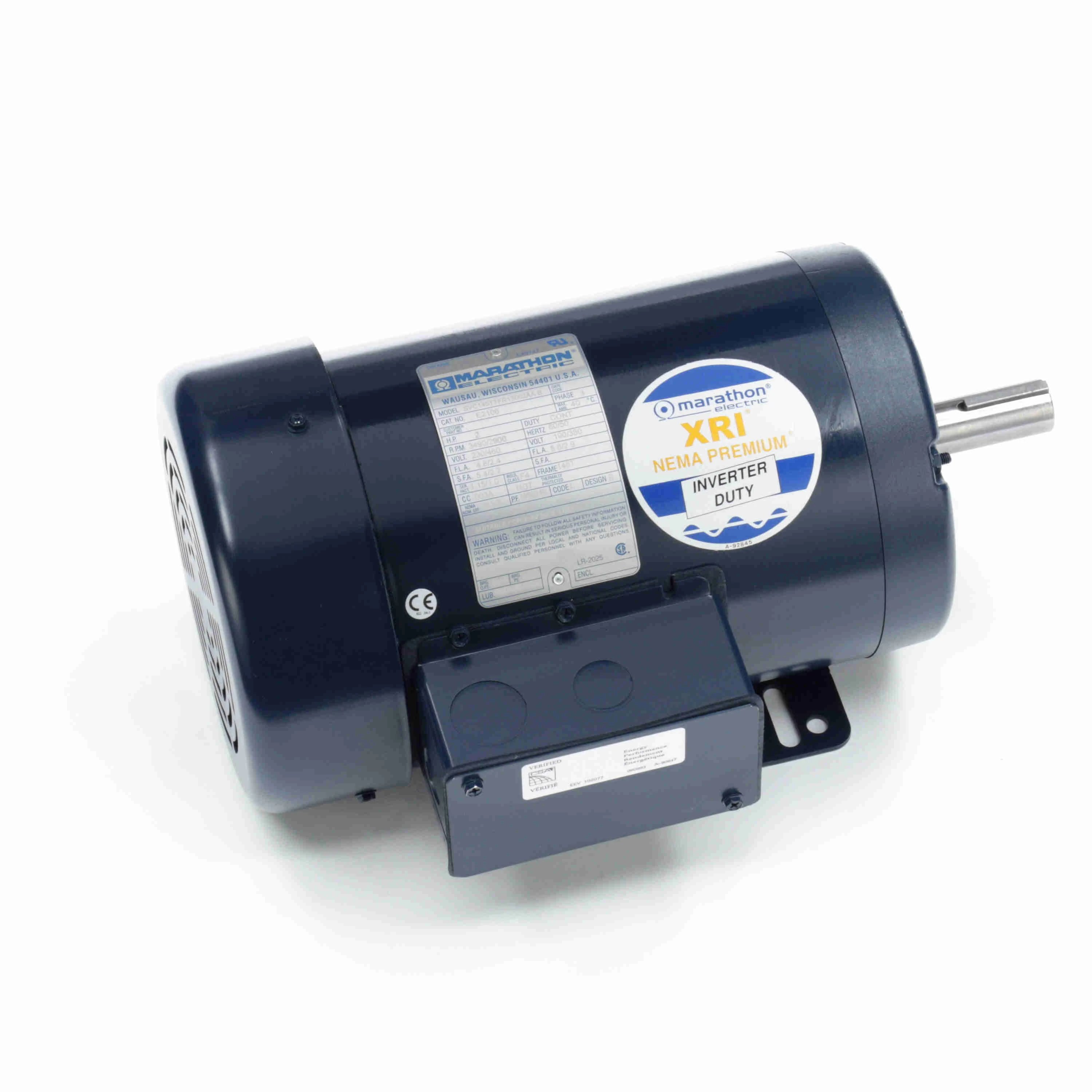

145TTFR13002 | 3490 RPM | 2 hp | 50/60 Hz | 4.8/2.4A | Three Phase | 145T | 40°C | 85.5% | €1,232.75 | |
 |

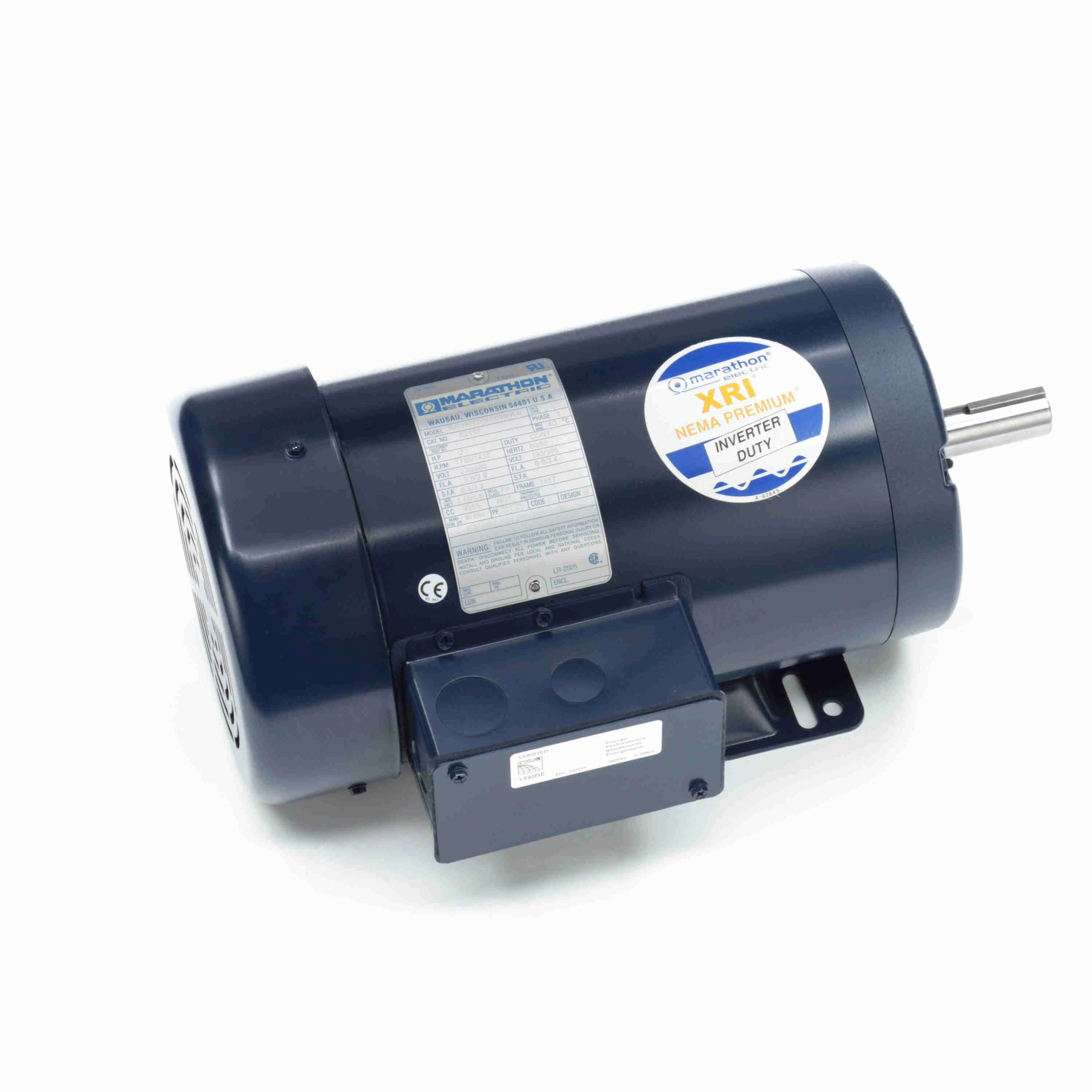

145TTFR16035 | 1745 RPM | 2 hp | 50/60 Hz | 5.8/2.9A | Three Phase | 145T | 40°C | 86.5% | €863.86 |
