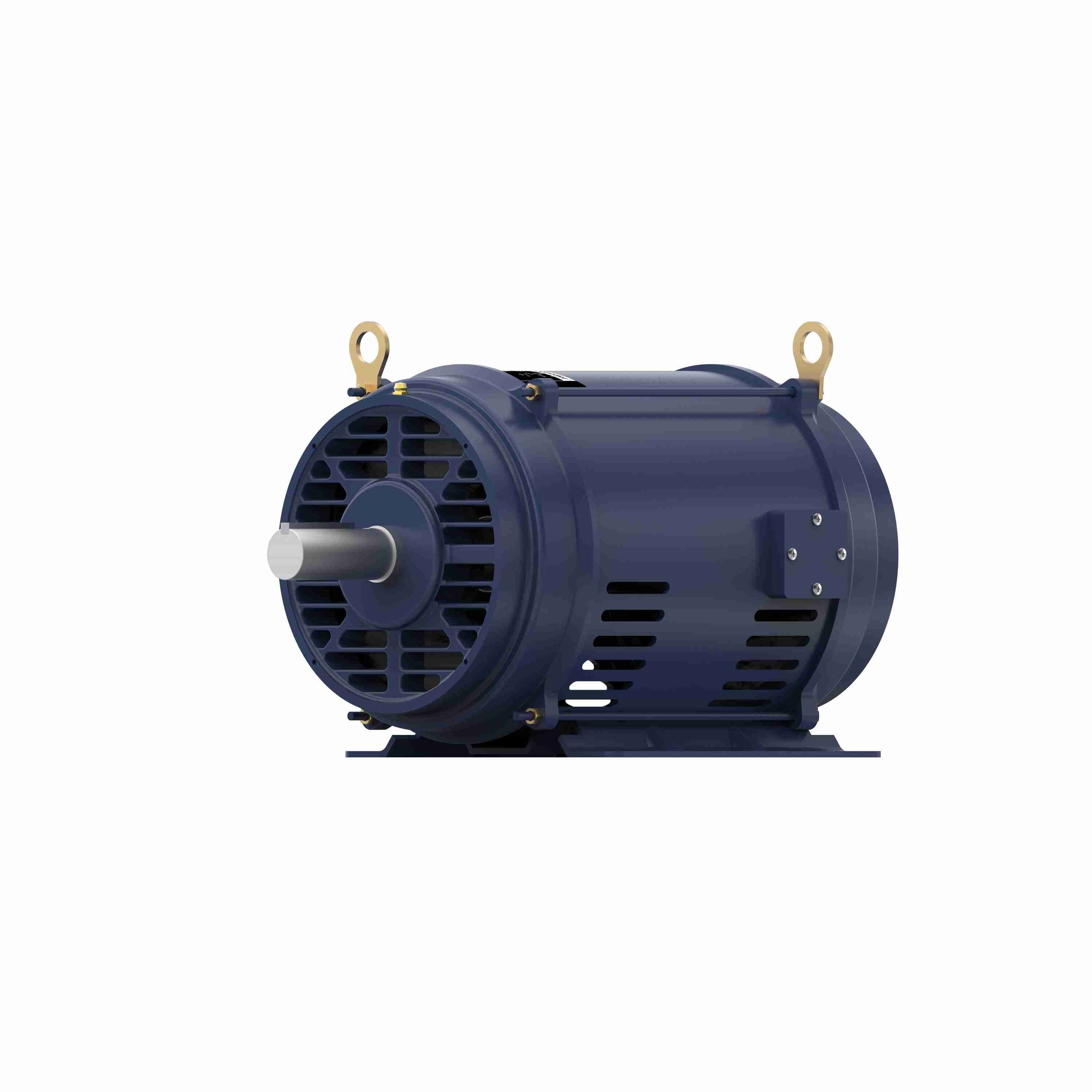

MARATHON MOTORS 256TTDBD6039 GT0862 / 256TTDBD6039AA General Purpose Motor, Open Drip Proof, Rigid Base Mount, 20 HP, 1,770 Nameplate RPM
Item: EA6GHWModel: 256TTDBD6039Cross Ref: 52ZV97 / GT0862 / 256TTDBD6039AA
In Stock
Get it by Tuesday, Sep 1
€1,911.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Cc No. | CC003A |
| Frame | 256T |
| Frame Material | Rolled Steel |
| Full Load Amps | 57A |
| Hp | 20 hp |
| Ins. Class | Class B |
| Length Less Shaft | 17 11/16" |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Three-Phase |
| Motor Efficiency Group | NEMA Premium Efficient , Premium Efficient, Premium Efficiency (IE3) |
| Motor Enclosure Design | Open Drip Proof , Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Motor Thermal Protection | None |
| Nameplate Speed | 1770 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Overall Length | 22 1/8" |
| Phase | 3 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 3/8" |
| Speed | 1701-1800/1701-1800 RPM |
| Usable @ 200 V | Yes |
| Voltage | 200V AC |
| Voltage Compatibility | 115/200-230/200-230/200-208/200-230/460/200-230/440/200V AC |
Shipping Info:
| Ship weight (kg) | 144 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 76.68 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
