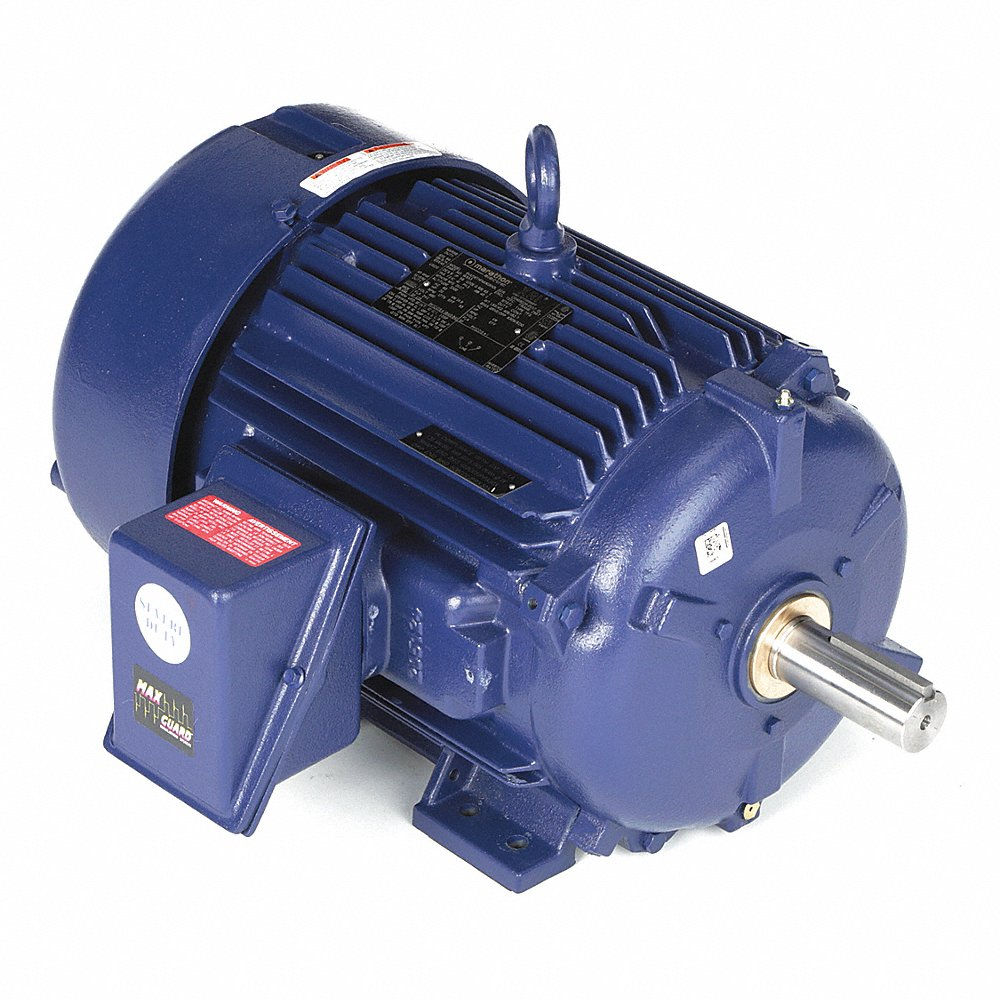

MARATHON MOTORS 256THFCD9026 W553A / 256THFCD9026BC Severe Duty Motor, 20 HP, 3 Phase, 60 Hz, 460 V, 1800 RPM, 256T Frame
Get it by Tuesday, Sep 1
€4,370.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Cc No. | CC003A |
| Frame | 256 t |
| Full Load Amps | 24.2A |
| Hp | 20 hp |
| Includes | Breather/Drain |
| Ins. Class | Class H |
| Inverter Rated | Yes |
| Lead Length | 3" to 8" |
| Length Less Shaft | 21" |
| Motor Application | IEEE Motor |
| Motor Bearings | Ball |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Nameplate Speed | 1768 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 25 7/8" |
| Phase | 3 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 3/16" |
| Temp. Code | T2B |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 144.87 |
| Ship height (cm) | 47.04 |
| Ship length (cm) | 78.11 |
| Ship width (cm) | 55.25 |
| Country of Origin | MX |
