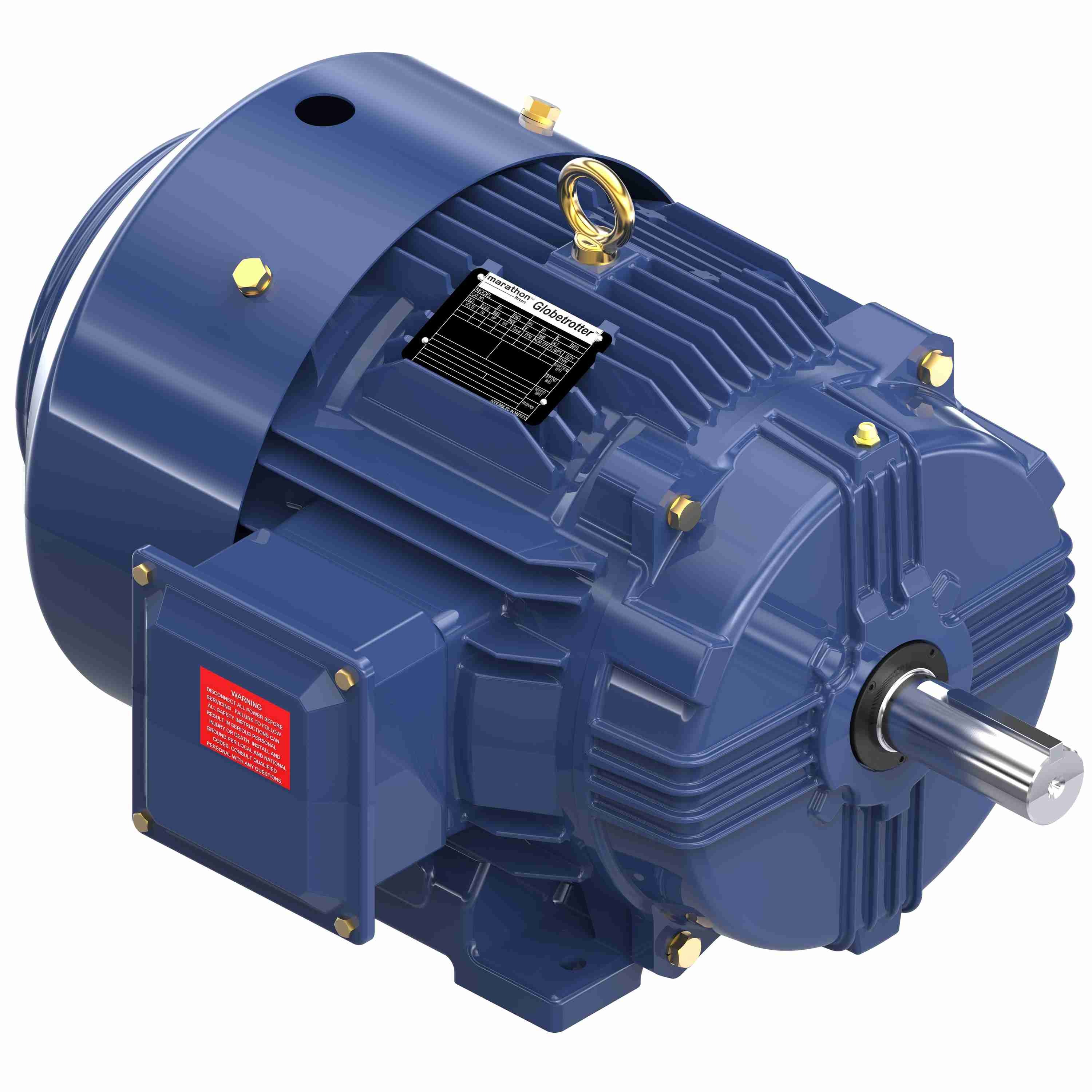

MARATHON MOTORS 254TTFCD6001 GT1021A / 254TTFCD6001CB General Purpose Motor, Totally Enclosed Fan Cooled, Rigid Base Mount, 15 HP
Item: EA6DPHModel: 254TTFCD6001Cross Ref: 44Z334 / GT1021A / 254TTFCD6001CB
In Stock
Get it by Tuesday, Aug 25
€1,937.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 17.8/35.5A |
| Cc No. | CC003A |
| Efficiency | 91% |
| Enclosure Type | Totally Enclosed, Fan Cooled (TEFC) |
| Frame | 254T |
| Frequency | 60 Hz |
| Full Load Amps | 35.5/17.8A |
| Hp | 15 hp |
| Includes | Conduit Box |
| Inverter Rated | Yes |
| Length Less Shaft | 20 1/8" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 2955/3545 RPM |
| Motor Application | General Purpose |
| Motor Design | Three-Phase |
| Motor Efficiency Group | NEMA Premium Efficient , Premium Efficient, Premium Efficiency (IE3) |
| Motor Enclosure Design | Totally Enclosed Fan Cooled , Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Motor Thermal Protection | None |
| Nameplate Speed | 3545 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93.6% |
| Overall Length | 24 1/8" |
| Phase | 3 |
| Rotation | Reversible |
| Shaft Design | T |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4" |
| Speed | 3001-3600/3001-3600 RPM |
| Thermal Protection | No Protection |
| Type | Three Phase Motor |
| Voltage | 230/460V AC |
| Voltage Compatibility | 230/460/208-230/460/208-220/440/200-230/460/200-230/440V AC |
Shipping Info:
| Ship weight (kg) | 135.45 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| Country of Origin | MX |
