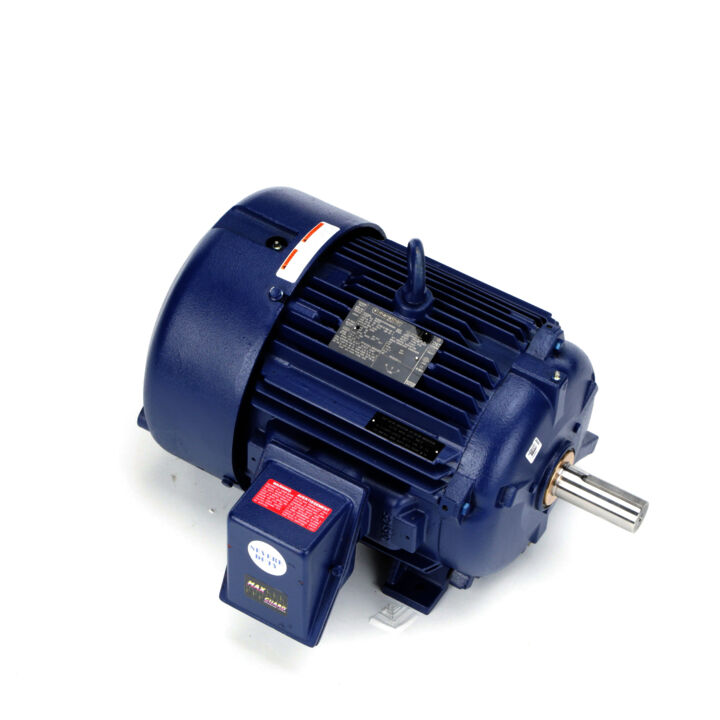

MARATHON MOTORS 254THFNA9001 W544 / 254THFNA9001BF Severe Duty Motor, 15 HP, 3600 RPM, 460 V, 60 Hz
Get it by Tuesday, Aug 25
€3,871.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 40°C |
| Ce Approved | Yes |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed |
| Frame | 254T |
| Full Load Amps | 17.5A |
| Full Load Efficiency | 91.7 |
| Hp | 15 hp |
| Insulation Class | Class F |
| Kva Code | G |
| Mounting Location | Rigid |
| Nema Design | B |
| Opposite End Bearing Size | 6210 |
| Orientation | Horizontal |
| Phase | 3 |
| Product Datasheet | marathon-motors-w544.pdf |
| Service Factor | 1.15 |
| Speed | 3001-3600 RPM |
| Starting Type | Line Or Inverter |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 139.5 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 79.38 |
| Ship width (cm) | 56.52 |
| Country of Origin | US |
Documentation:
