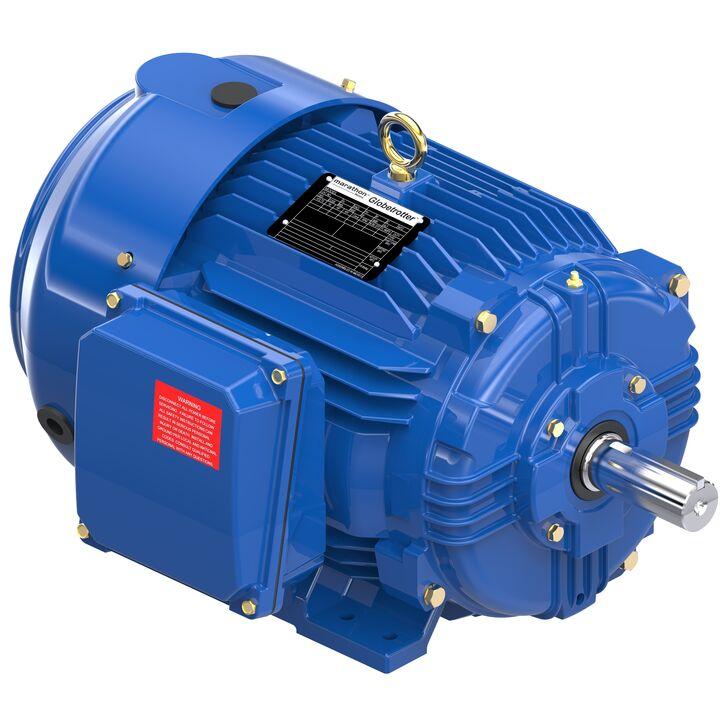

MARATHON MOTORS 215TTFCD6501 E604B / 215TTFCD6501BC Severe Duty Motor, 10 HP, 3 Phase, 60 Hz, 460V, 3600 RPM
Get it by Thursday, Dec 25
€2,310.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 90.2% |
| Efficiency Group | Premium |
| Frame | 215T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 11.8A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hazardous Location Class | 1 A, B, C, D |
| Hazardous Location Division | Division 2 |
| Hp | 10 hp |
| Includes | Max Guard Insulation, Shaft Key |
| Ins. Class | Class H |
| Inverter Rated | Yes |
| Length Less Shaft | 16 5/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3518 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.2% |
| Number | Cc003A |
| Number Of Speeds | 1 |
| Overall Length | 20 1/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/8" |
| Standards | Ce, Csa, Ul Listed |
| Temp. Code | T2B |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 227 lbs. |
Shipping Info:
| Ship weight (kg) | 102.15 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 50.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Efficiency | Overall Length | Length Less Shaft | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
215TTFCD6881 | 230/460V | 1180 RPM | 5 hp | 13.6/6.8A | 89.5% | 19 5/8" | 16 1/4" | 40°C | €2,387.13 |
