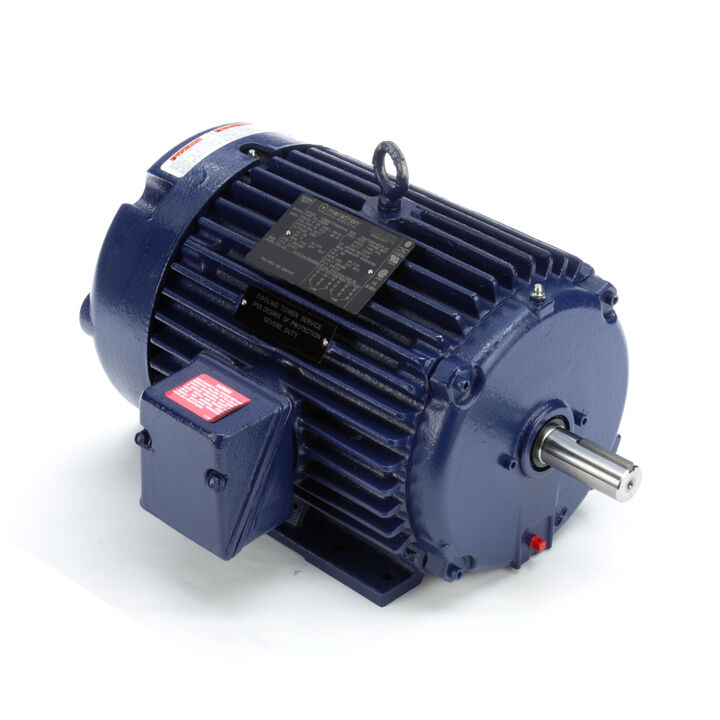

MARATHON MOTORS 213TTFND6550 U869B / 213TTFND6550AA Severe Duty Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, Dec 24
10.00% off
€2,371.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Ambient Temp. Max (c/f) | 40 Degrees C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Epoxy Coated |
| Frame | 213T |
| Frequency | 50/60 Hz |
| Full Load Amps | 19.2/9.6A |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Length | 19 5/8" |
| Length Less Shaft | 16 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Cooling Tower |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal/Vertical Shaft Up |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Number | Cc003A |
| Overall Length | 19 5/8" |
| Phase | 3 |
| Rpm | 1765 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 101.7 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 50.8 |
| Country of Origin | US |
