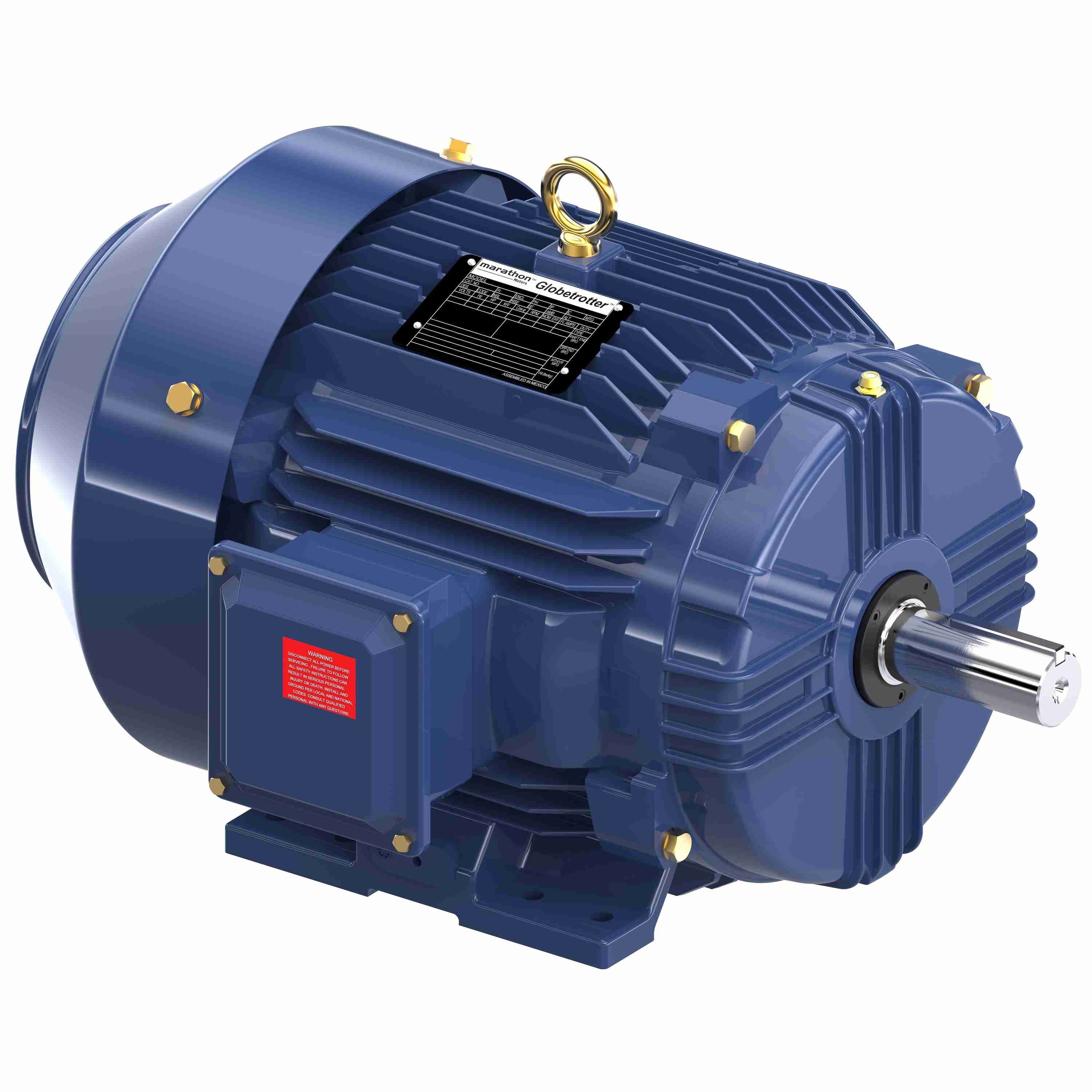

MARATHON MOTORS 213TTFCD6070 GT1016A-P / 213TTFCD6070BA General Purpose Motor, Three Phase, 7 1/2 HP, 1,765 Nameplate RPM, 230/460V AC, 213T Frame
Item: DG2GWVModel: 213TTFCD6070Cross Ref: 482P73 / GT1016A-P / 213TTFCD6070BA
In Stock
Get it by Tuesday, Aug 25
€1,417.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Efficiency Rating | NEMA Premium Efficiency |
| Frame Family | NEMA 210 |
| Frame Size | 213T |
| Frequency | 50/60 Hz |
| Full Load Current @ 60 Hz | 19.2/9.6A |
| Hp | 7 1/2 hp |
| Insulation Class | H |
| Inverter Rating | Yes |
| Motor Design | Three Phase |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting Type | Rigid Base |
| Nameplate Service Factor @ 60 Hz | 1.15" |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
| No. Of Speed | 1 |
| Phase | Three |
| Speed | 1701 RPM to 1800 RPM , 1765 RPM |
| Usable @ 208 V | Not Usable at 208V |
Shipping Info:
| Ship weight (kg) | 92.7 |
| Ship height (cm) | 36.83 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 45.72 |
| Country of Origin | MX |
